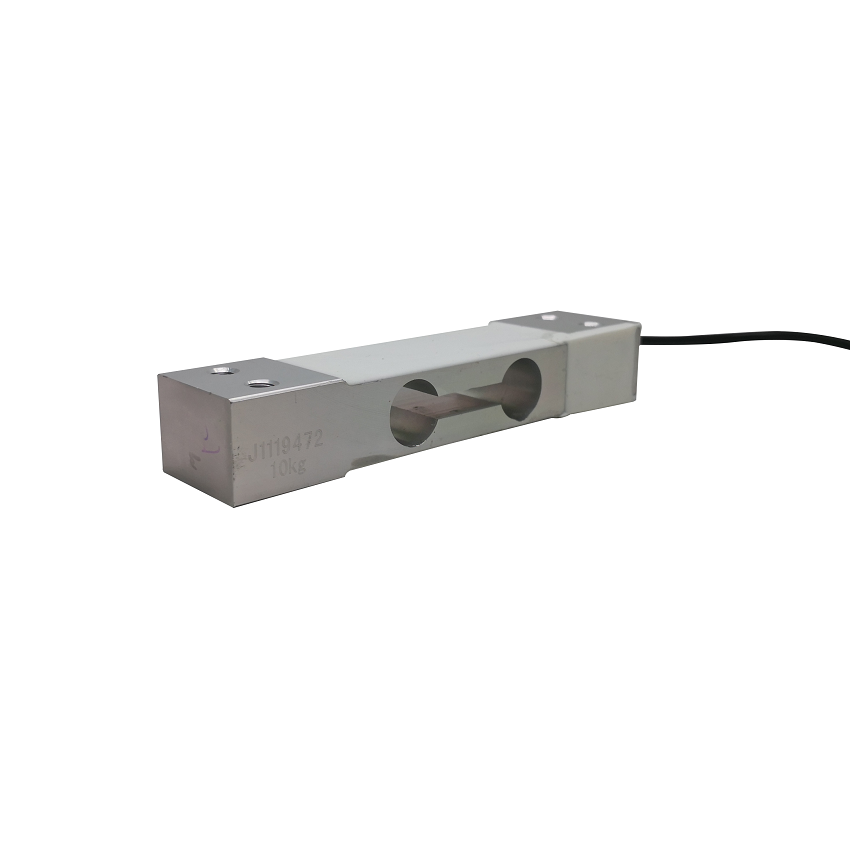

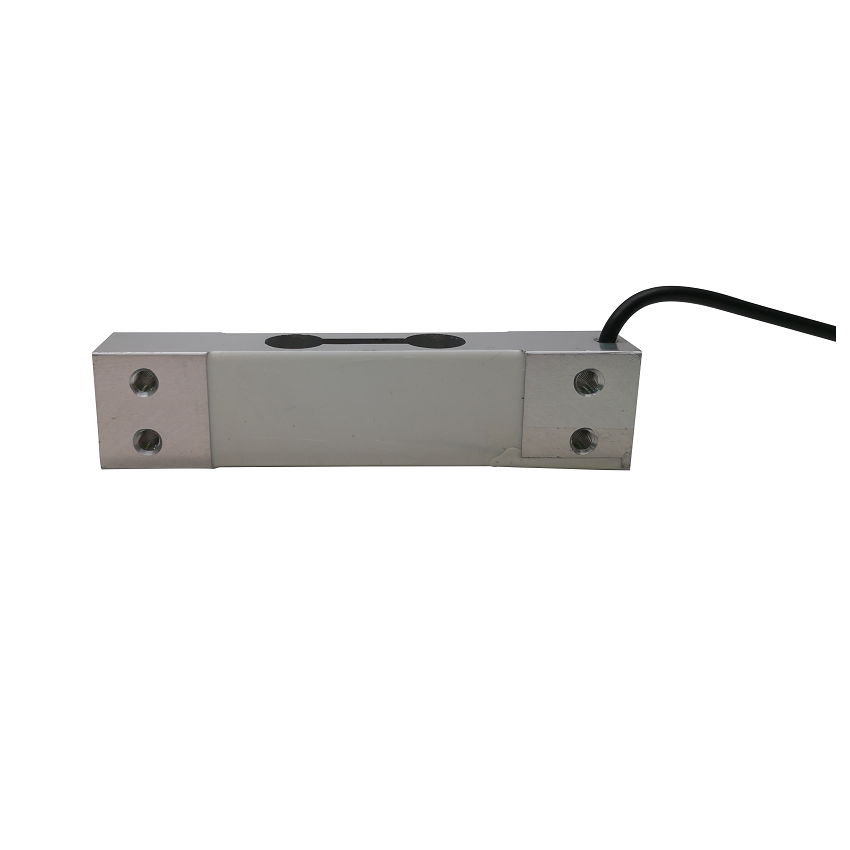

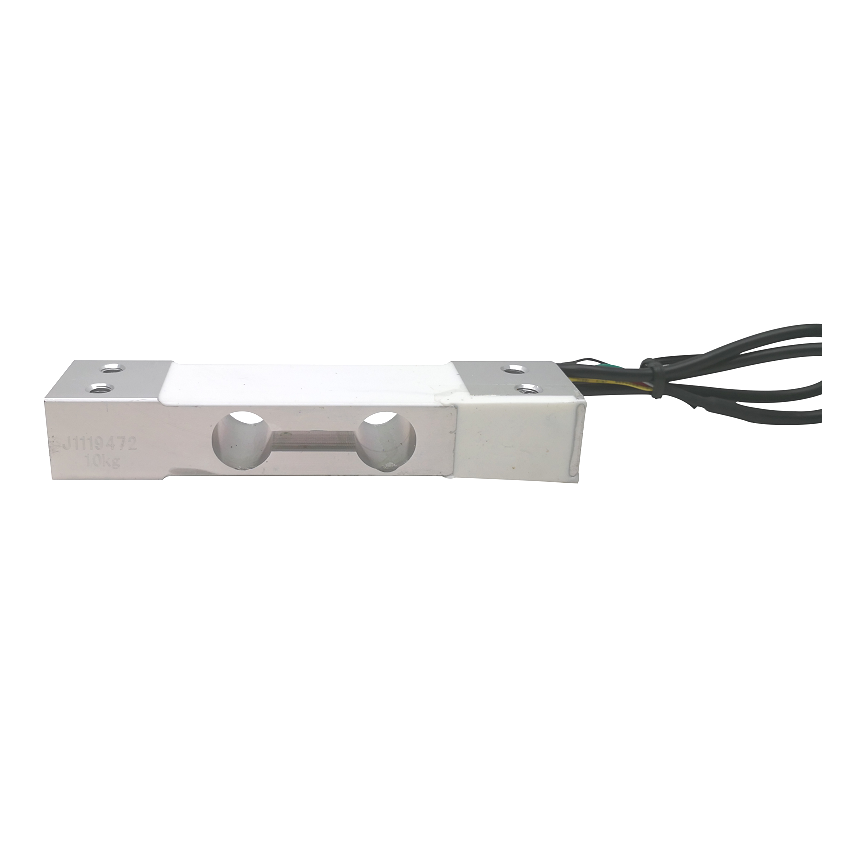

A-ALT02 Single point load cell
Description
A-ALT02 is strain gauge based load cell constructed from aluminum alloy for high accuracy. It is mainly used in check weighing, suitable for pan size up to 250X350mm.
Application
Table top machines
Bench scale
Price computing scale
Retail scales electronic counting scales
Check weighing scales
Main Dimensions(mm)
Specifications
Capacity | 5～60 kg | Zero balance | ±1%F.S |
Rated output | 2.0mV/V±0.1% | Input resistance | 400±10Ω |
Accuracy class | C3,0.05 | Output resistance | 350±5Ω |
Non-linearity | 0.02%F.S | Safe overload | 120%F.S |
Hysteresis | 0.02%F.S | Ultimate overload | 150%F.S |
Creep in 30 minutes | 0.02%F.S | Excitation voltage | 9V AC/DC |
Temperature effect span | 0.02%F.S/10℃ | Maximum excitation voltage | 12V AC/DC |
Temperature effect zero | 0.02%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10～+40℃ | Environmental protection | IP67 |
Operating temperature range | -30～+65℃ | Material Aluminum steel | |
Cable: 4m Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) | |||
