A-ALT03
NBANE
aluminum

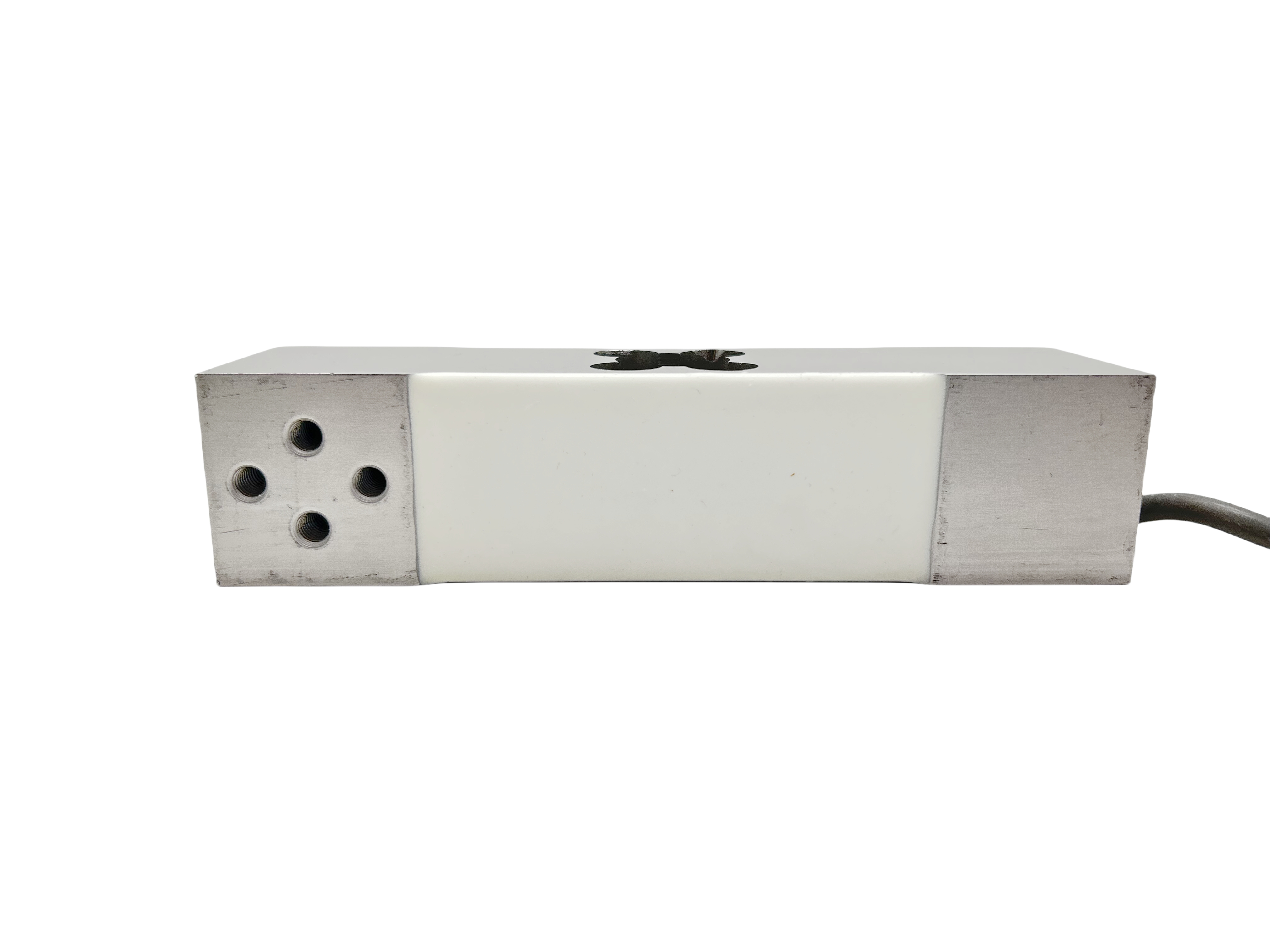

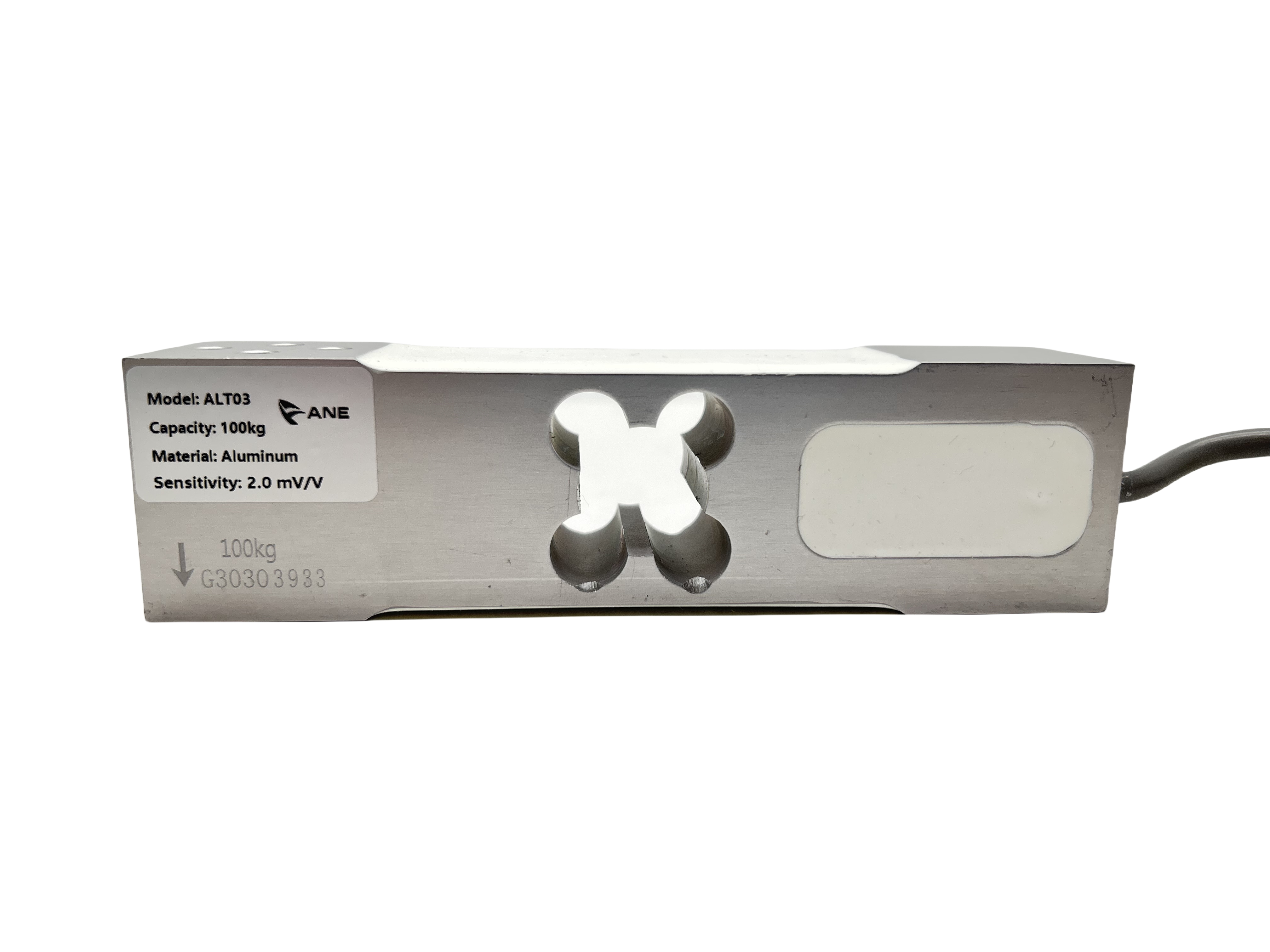

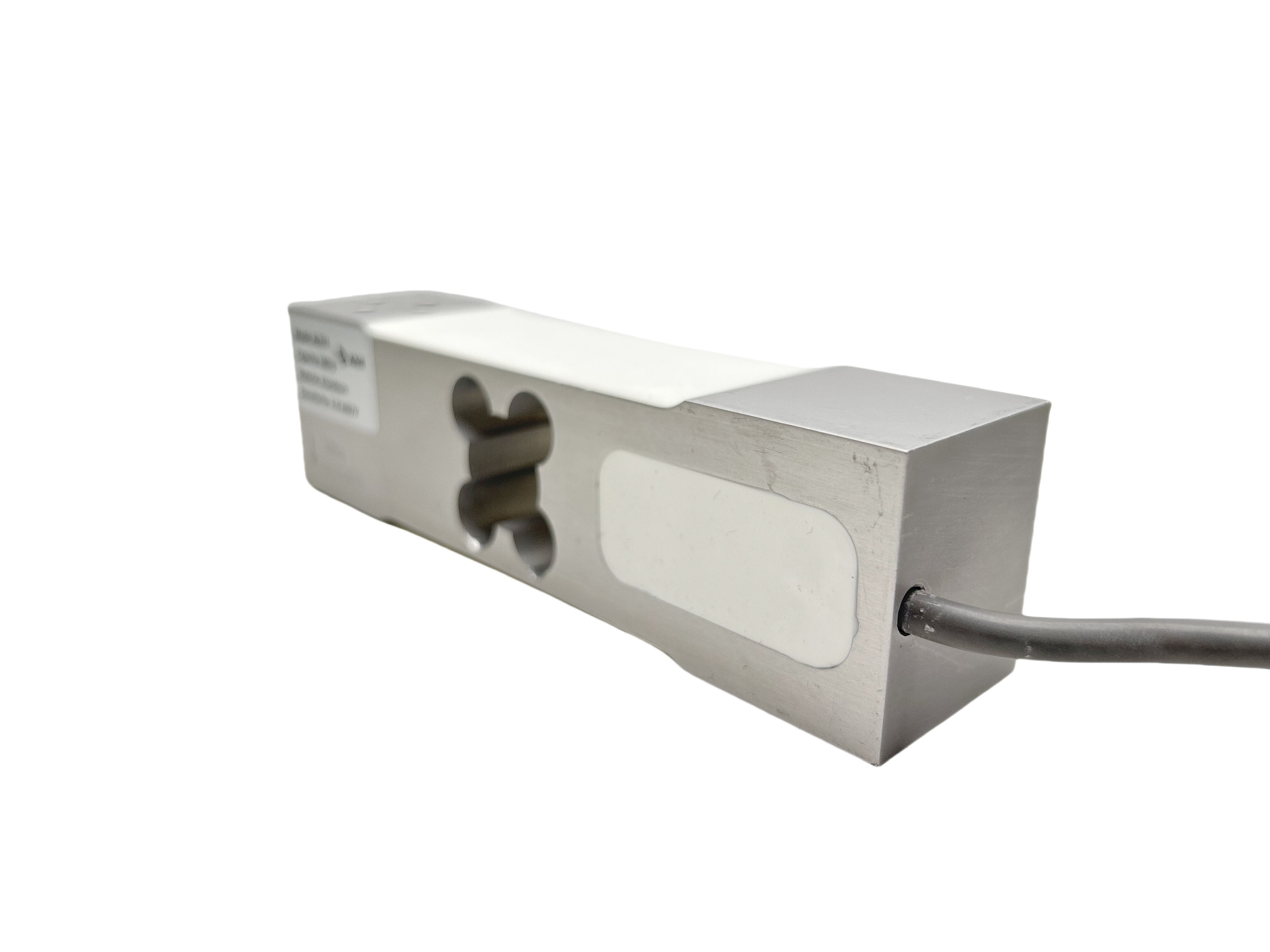

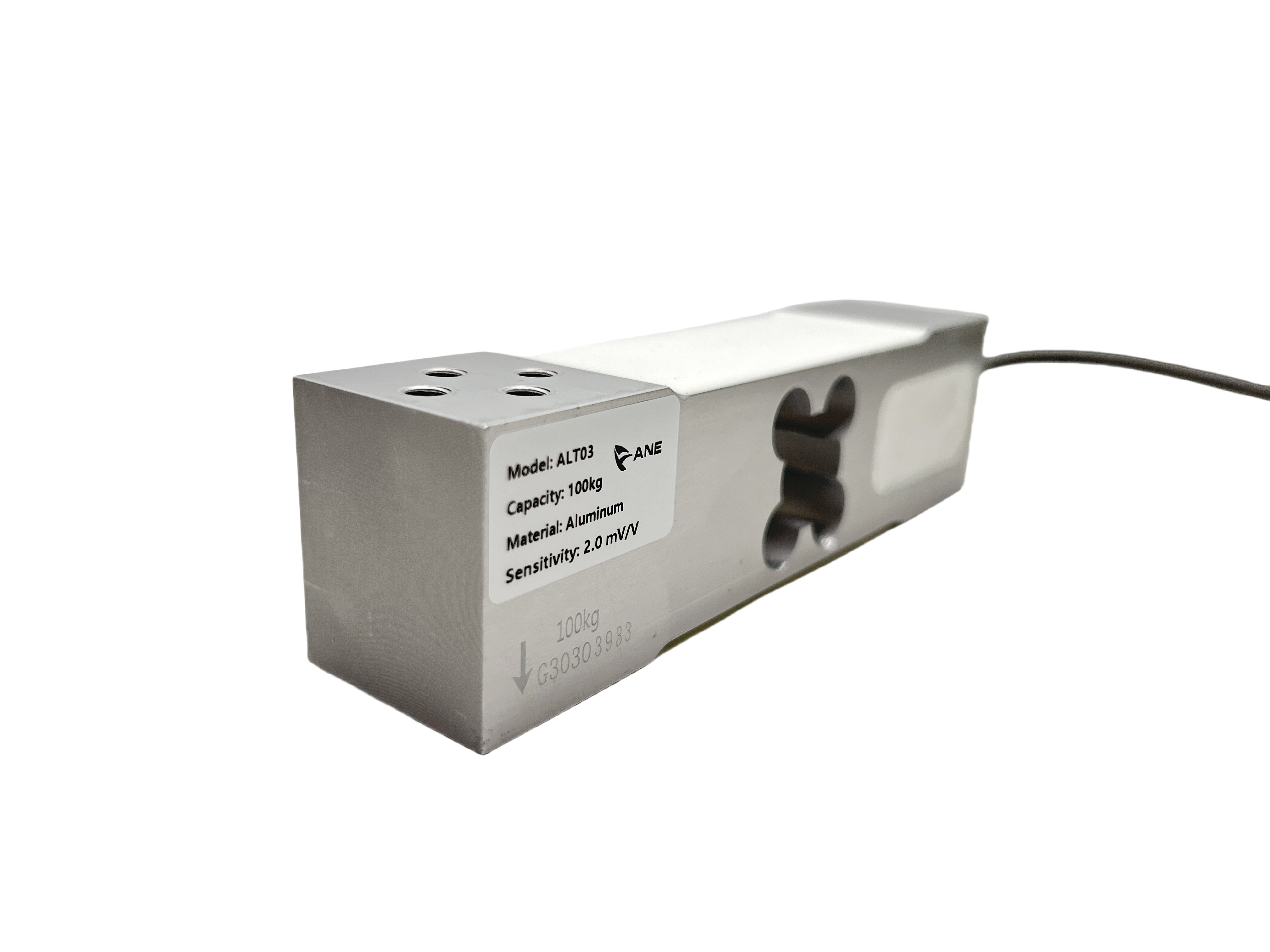

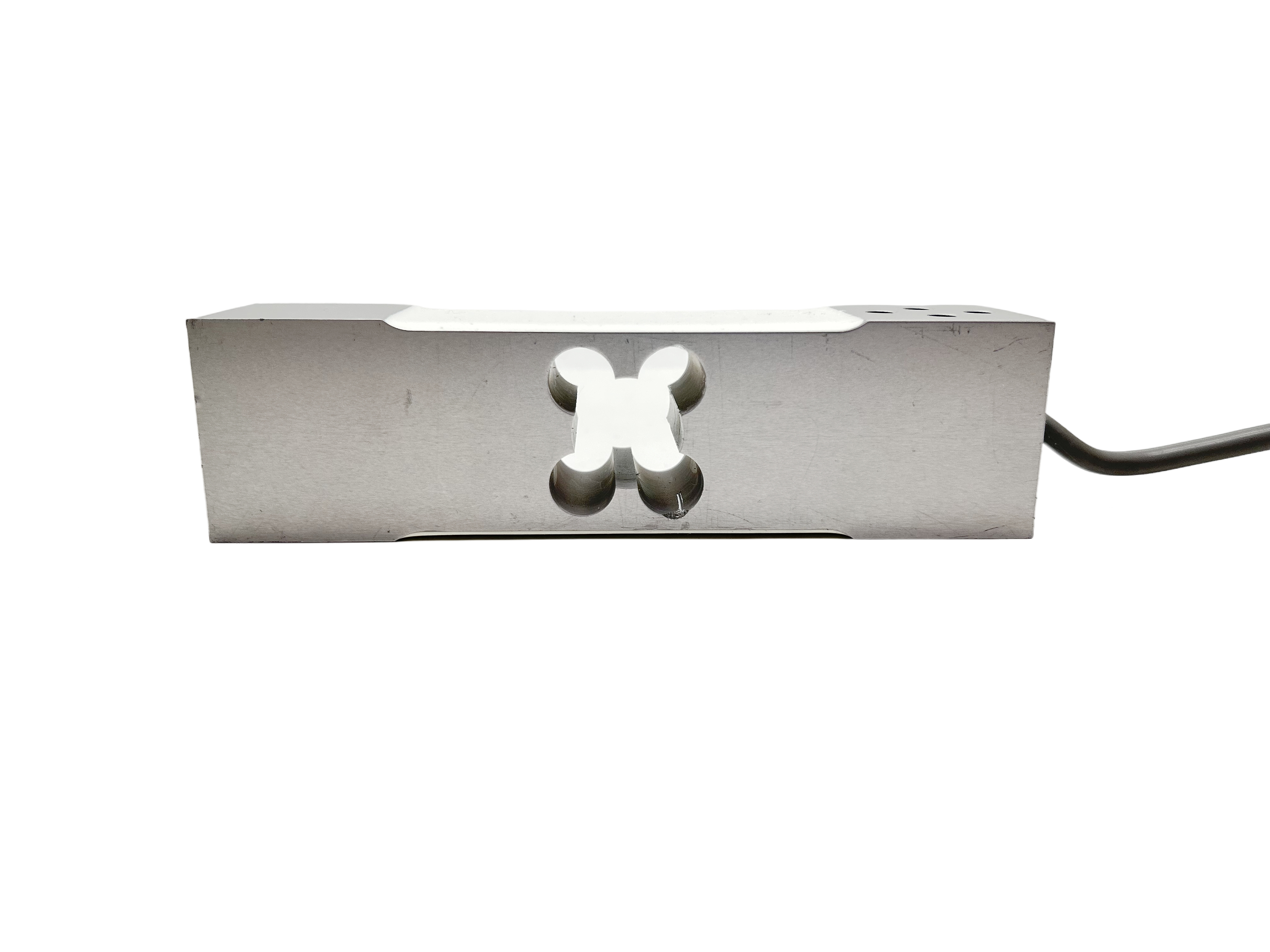

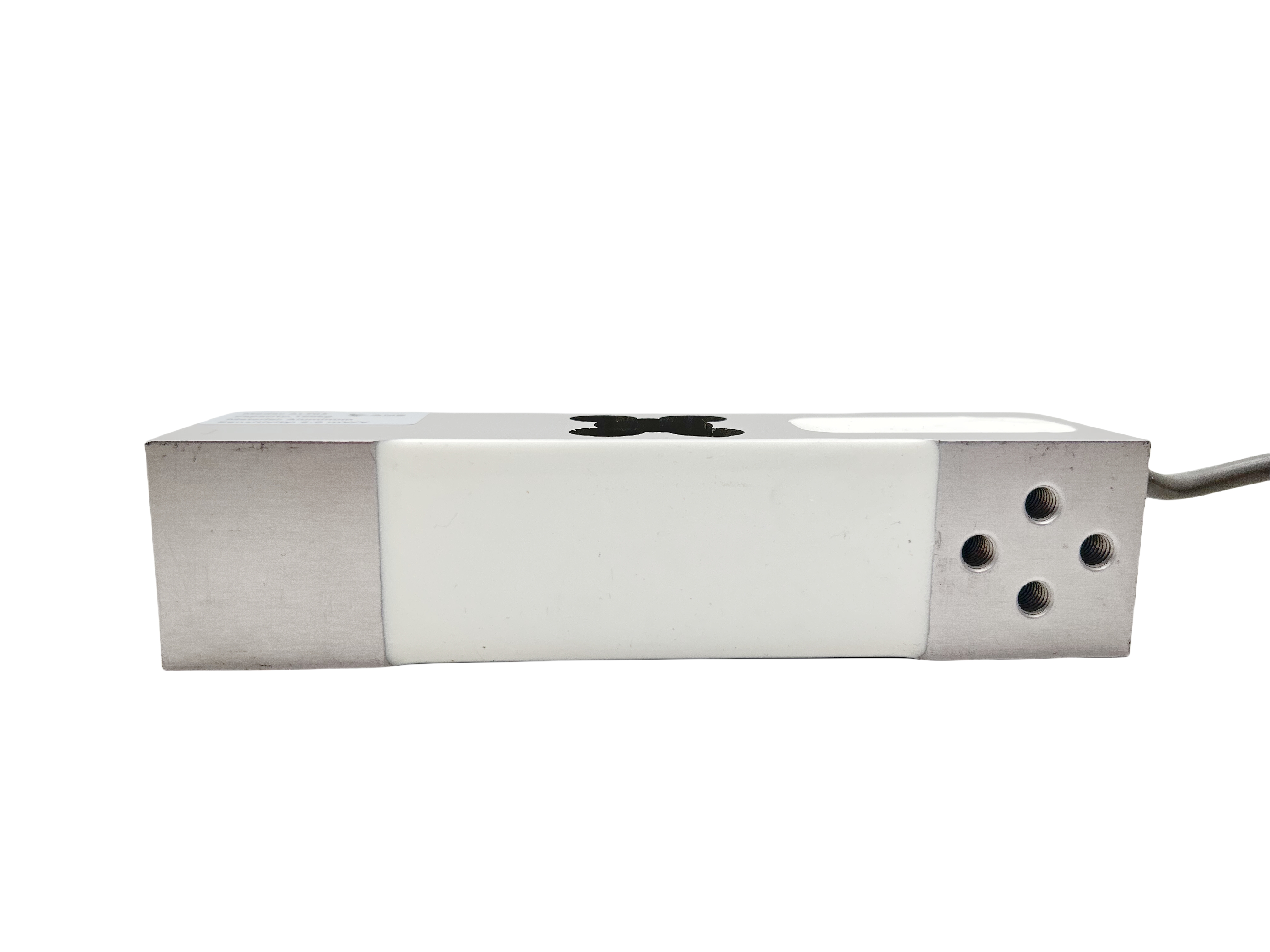

A-ALT03 single point load cell
Description
Aluminum load cell, it is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suitable for electronic top scale, floor scale and other weighing equipment.
Application
Electronic top scale
Floor scale
Other weighing equipment
Main Dimensions and Accessories(mm)
Specifications
Capacity | 50～500kg | Zero balance | ±2%F.S |
Rated output | 2.0mV/V±0.1% | Input resistance | 405±10Ω |
Accuracy class | C3,0.05 | Output resistance | 350±3Ω |
Non-linearity | 0.02，0.05%F.S | Safe overload | 120%F.S |
Hysteresis | 0.02，0.05%F.S | Ultimate overload | 150%F.S |
Creep in 30 minutes | 0.02，0.05%F.S | Excitation voltage | 5~12 V |
Temperature effect span | 0.015%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Temperature effect zero | 0.017%F.S/10℃ | Environmental protection | IP68 |
Compensated temperature range | -10～+40℃ | ||
Operating temperature range | -35～+65℃ | Material Aluminum | |
Cable: Φ5*2m Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) | |||
