A-ALT06 single point load cell
Description

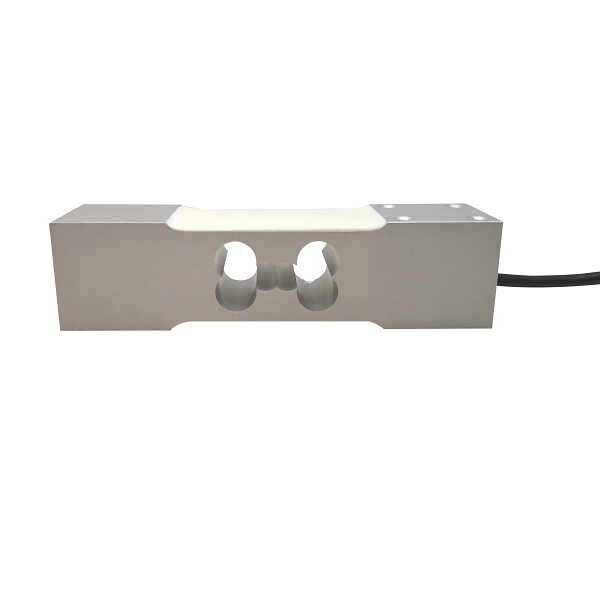

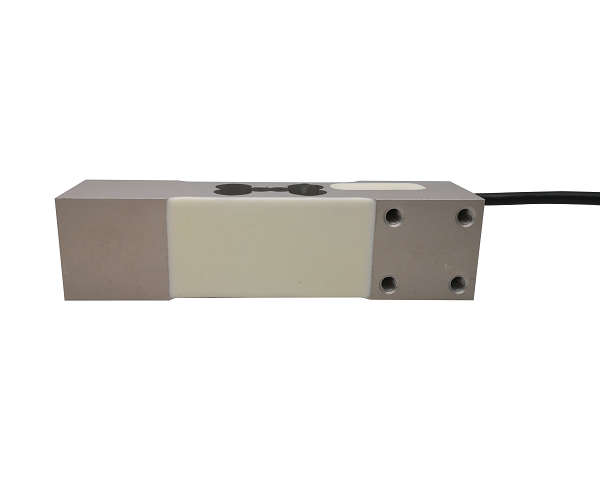

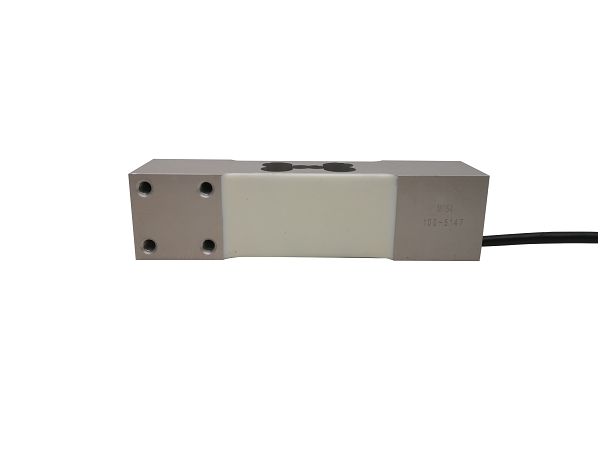

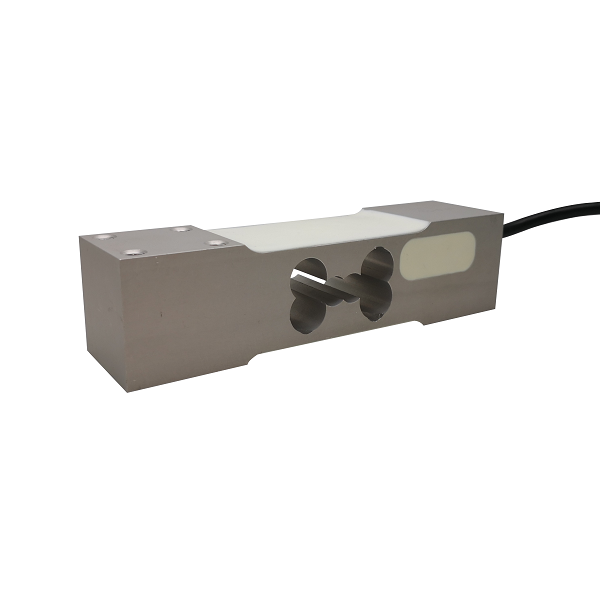

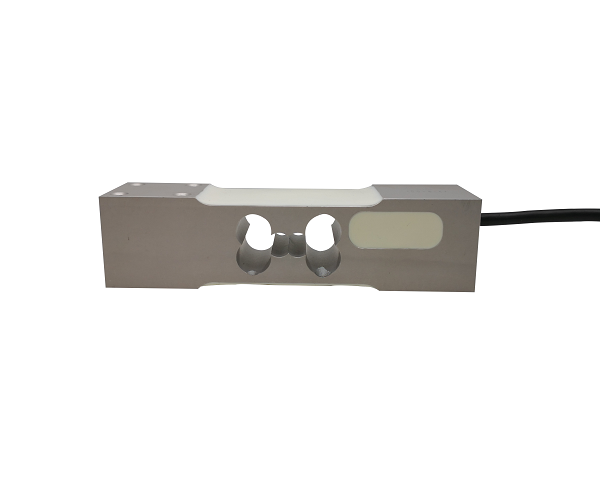

A-ALT06 is strain gauge based load cell constructed from aluminum alloy for high accuracy. With a low profile design, it is mainly used in bench scales and smaller floor scales, suitable for platform size up to 400X400mm.
Application
Bench scale
Floor scale
Compression testing device
Other weighing equipment
Main Dimensions and Accessories(mm)
Specifications
Capacity | 30～250kg | Zero balance | ±2%F.S |
Rated output | 2.0mV/V±0.1% | Input resistance | 410±10Ω |
Accuracy class | C3,0.05 | Output resistance | 350±3Ω |
Non-linearity | 0.02，0.05%F.S | Safe overload | 150%F.S |
Hysteresis | 0.02，0.05%F.S | Ultimate overload | 300%F.S |
Creep in 30 minutes | 0.02，0.05%F.S | Excitation voltage | 9~12V DC |
Temperature effect span | 0.015%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Temperature effect zero | 0.017%F.S/10℃ | Environmental protection | IP67 |
Compensated temperature range | -10～+40℃ | ||
Operating temperature range | -30～+65℃ | Material Aluminum | |

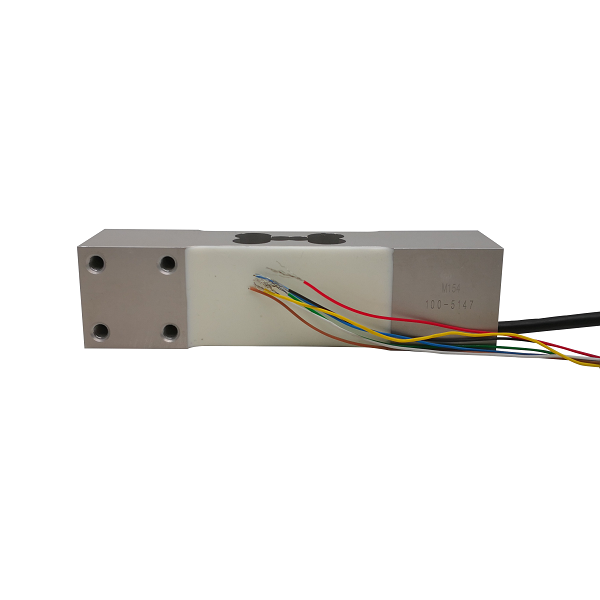

Cable: Φ5*3m Wring: Green(EXC+), Black(EXC-), Red(SIG+), White(SIG-), Blue(Sen+), Brown(Sen-), Yellow(Shield) | |||
