A-ALT08
NBANE
aluminum

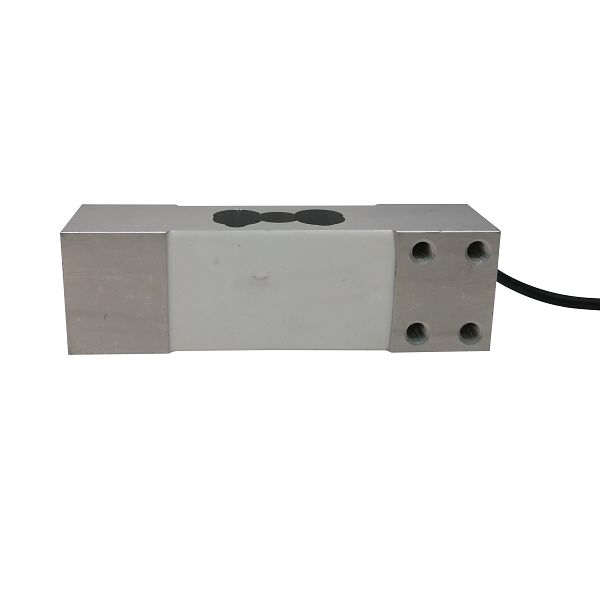

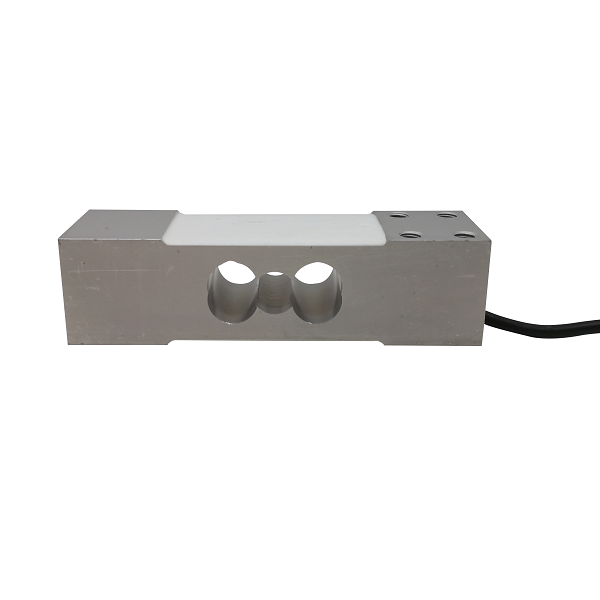

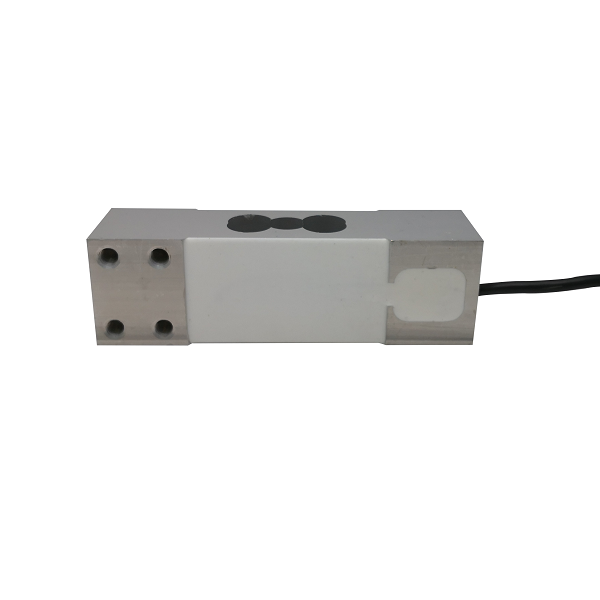

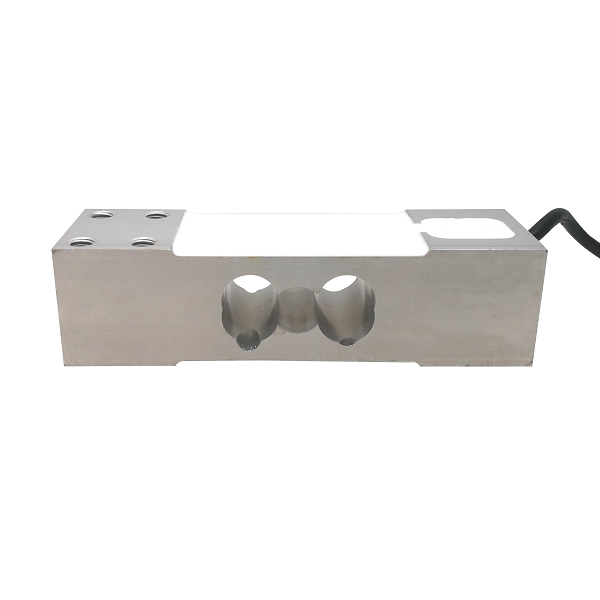

A-ALT08 single point load cell
Description
A-ALT08 is strain gauge based load cell constructed from aluminum alloy for high accuracy. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.
Application
Electronic scale
Floor scale
Compression testing device
Other weighing equipment
Main Dimensions and Accessories(mm)
Specifications
Capacity | 60～300kg | Zero balance | ±2%F.S |
Rated output | 2.0mV/V±0.1% | Input resistance | 405±10Ω |
Accuracy class | C3,0.05 | Output resistance | 350±3Ω |
Non-linearity | 0.02，0.05%F.S | Safe overload | 120%F.S |
Hysteresis | 0.02，0.05%F.S | Ultimate overload | 150%F.S |
Creep in 30 minutes | 0.02，0.05%F.S | Excitation voltage | 9~12V DC |
Temperature effect span | 0.015%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Temperature effect zero | 0.017%F.S/10℃ | Environmental protection | IP65 |
Compensated temperature range | -10～+40℃ | ||
Operating temperature range | -20～+60℃ | Material Aluminum | |
Cable: Φ5*3m Wring: Green(EXC+), Black(EXC-), Green(SIG+), White(SIG-), Yellow(Shield) | |||
