A-BT06
ANE
Stainless steel

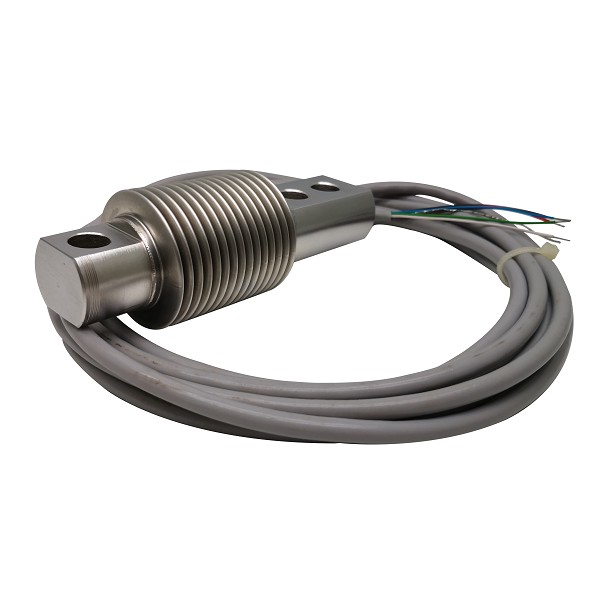

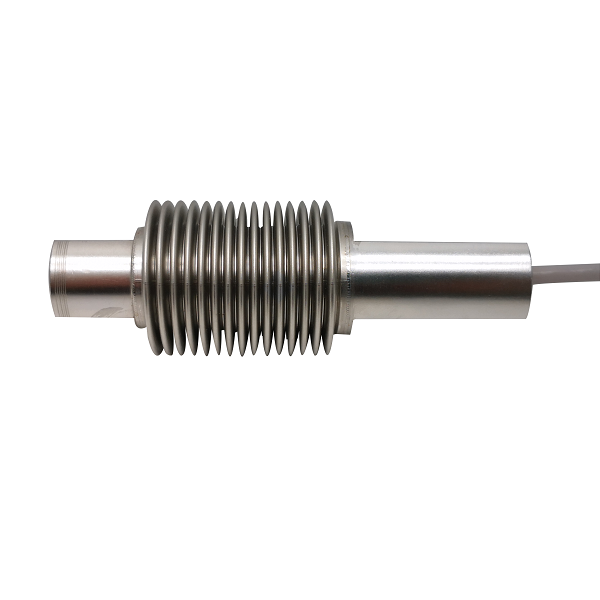

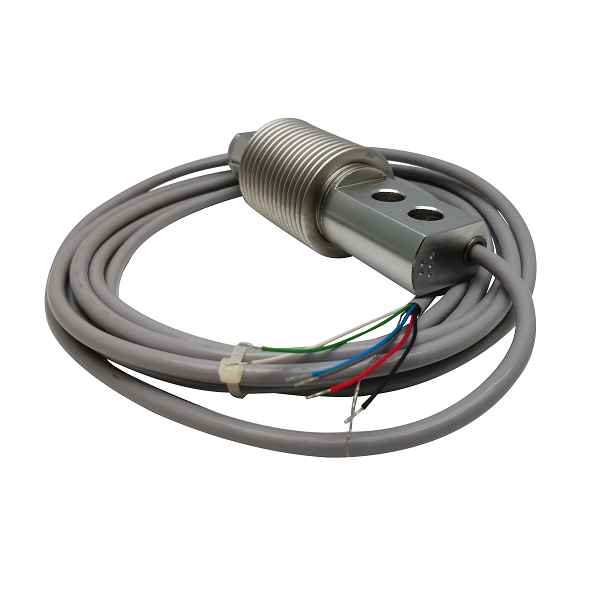

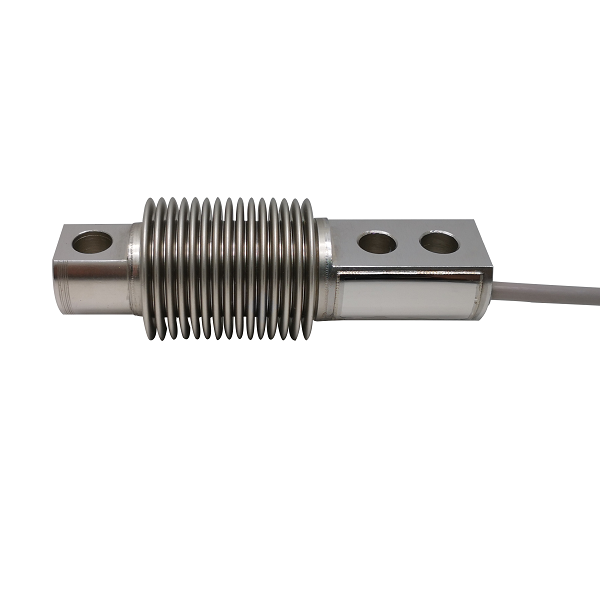

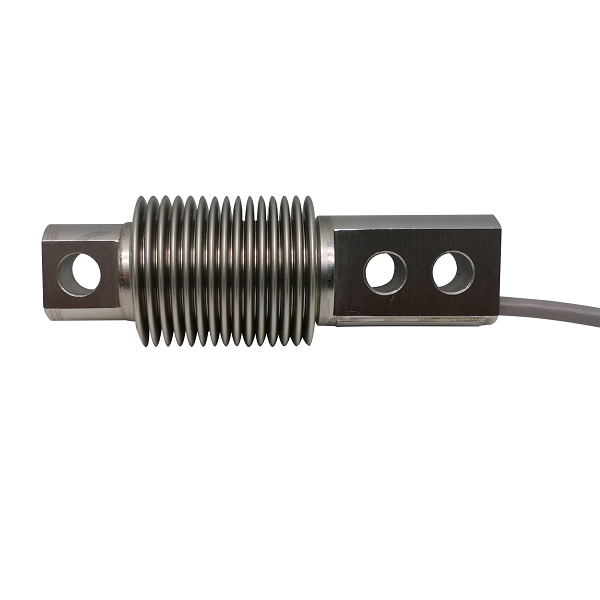

A-BT06 full stainless steel below type load cell
Description
Welded bending stainless steel load cell. The low profile, high accuracy and sealing makes this load cell highly suitable for applications such as low profile platforms, weighing and packing machines, conversion of mechanical scales and variety of other applications where sealed cells are required.
Main Dimensions and Accessories
Specifications
Capacity | 5~1000kg | Zero balance | ±1%F.S |
Rated output | 2.0mv/v±0.1% | Input resistance | 400±50Ω |
Accuracy class | C3,D1 | Output resistance | 356±1Ω |
Non-linearity | 0.02,0.05%F.S | Safe overload | 150%F.S |
Hysteresis | 0.02,0.05%F.S | Ultimate overload | 300%F.S |
Creep in 30 minutes | 0.02,0.05%F.S | Excitation voltage | 10V AC/DC |
Temperature effect span | 0.015%F.S/10℃ | Maximum excitation voltage | 15V AC/DC |
Temperature effect zero | 0.012%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10~+40℃ | Environmental protection | IP68 |
Operating temperature range | -30~+70℃ | Material Stainless steel | |
Capacity: 5;10;20;50;100;200;500;1000kg Cable: 3m Wring: +Exc (Blue); -Exc (Black); +Sig (White); -Sig(Red); +Sen (Green); -Sen (Grey) |
A-BT06 full stainless steel below type load cell
Description
Welded bending stainless steel load cell. The low profile, high accuracy and sealing makes this load cell highly suitable for applications such as low profile platforms, weighing and packing machines, conversion of mechanical scales and variety of other applications where sealed cells are required.
Main Dimensions and Accessories
Specifications
Capacity | 5~1000kg | Zero balance | ±1%F.S |
Rated output | 2.0mv/v±0.1% | Input resistance | 400±50Ω |
Accuracy class | C3,D1 | Output resistance | 356±1Ω |
Non-linearity | 0.02,0.05%F.S | Safe overload | 150%F.S |
Hysteresis | 0.02,0.05%F.S | Ultimate overload | 300%F.S |
Creep in 30 minutes | 0.02,0.05%F.S | Excitation voltage | 10V AC/DC |
Temperature effect span | 0.015%F.S/10℃ | Maximum excitation voltage | 15V AC/DC |
Temperature effect zero | 0.012%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10~+40℃ | Environmental protection | IP68 |
Operating temperature range | -30~+70℃ | Material Stainless steel | |
Capacity: 5;10;20;50;100;200;500;1000kg Cable: 3m Wring: +Exc (Blue); -Exc (Black); +Sig (White); -Sig(Red); +Sen (Green); -Sen (Grey) |
