A-CT10
ANE
alloy steel

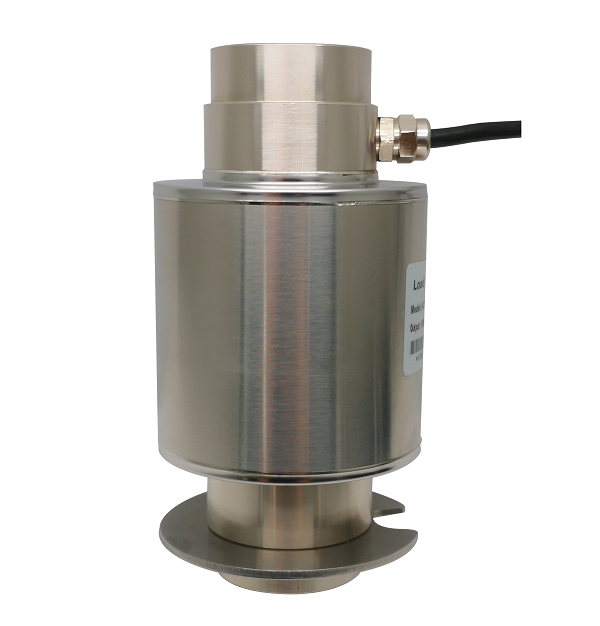

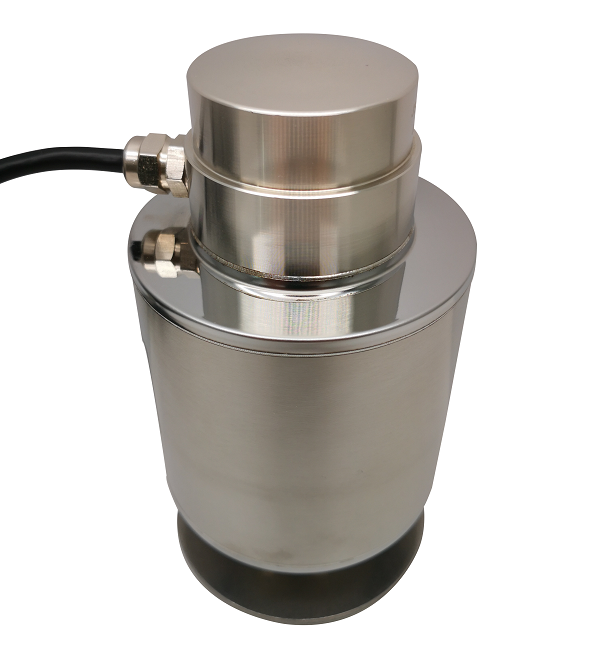

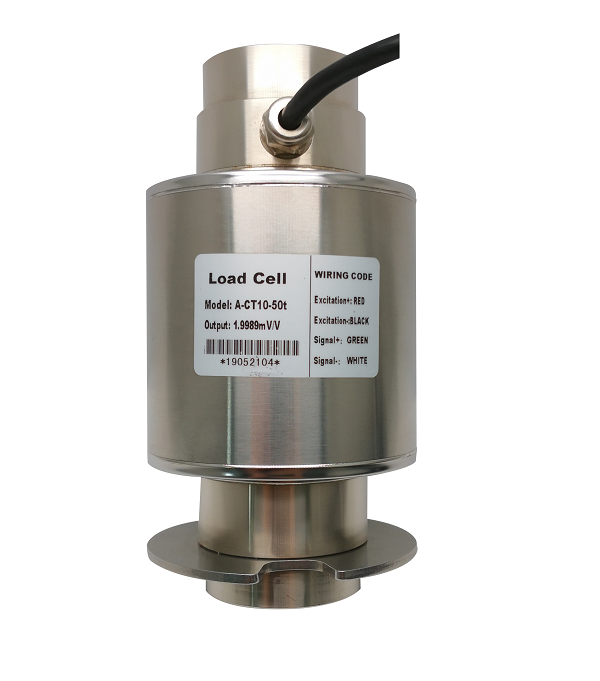

A-CT10 Column type load cell
Description
A-CT10 column type load cell with hermetically sealed structure, fast dynamic response, strong anti-overload capability, upper ball head load bearing. It is simple to install, easy to use.
Application
Electronic truck scale
Dynamic railroad scale
Axle load scale

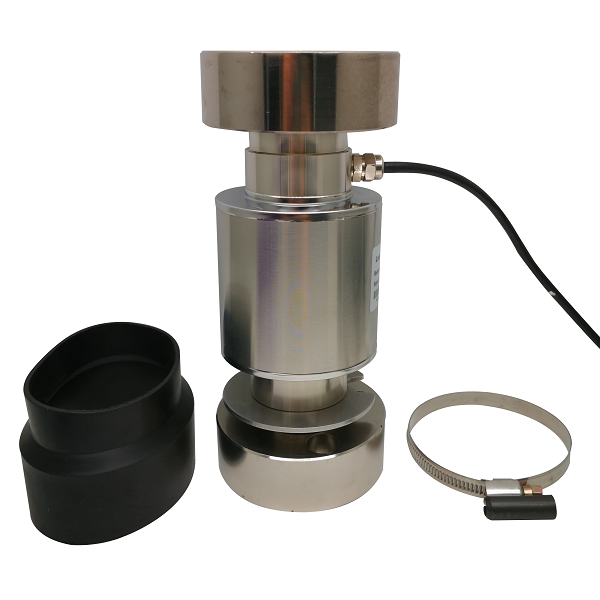

Main Dimensions and Accessories(mm)
Specifications
Capacity | 10～50t | Zero balance | ±1%F.S |
Rated output | 2.0mv/v±0.1% | Input resistance | 700±10Ω |
Accuracy class | 0.03,0.05 | Output resistance | 702±3Ω |
Non-linearity | 0.03%F.S | Safe overload | 150%F.S |
Hysteresis | 0.03%F.S | Ultimate overload | 250%F.S |
Creep in 30 minutes | 0.03%F.S | Excitation voltage | 10V AC/DC |
Temperature effect span | 0.015%F.S/10℃ | Maximum excitation voltage | 15V AC/DC |
Temperature effect zero | 0.02%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10～+40℃ | Environmental protection | IP67 |
Operating temperature range | -30～+65℃ | Material Alloy steels/Stainless steel | |
