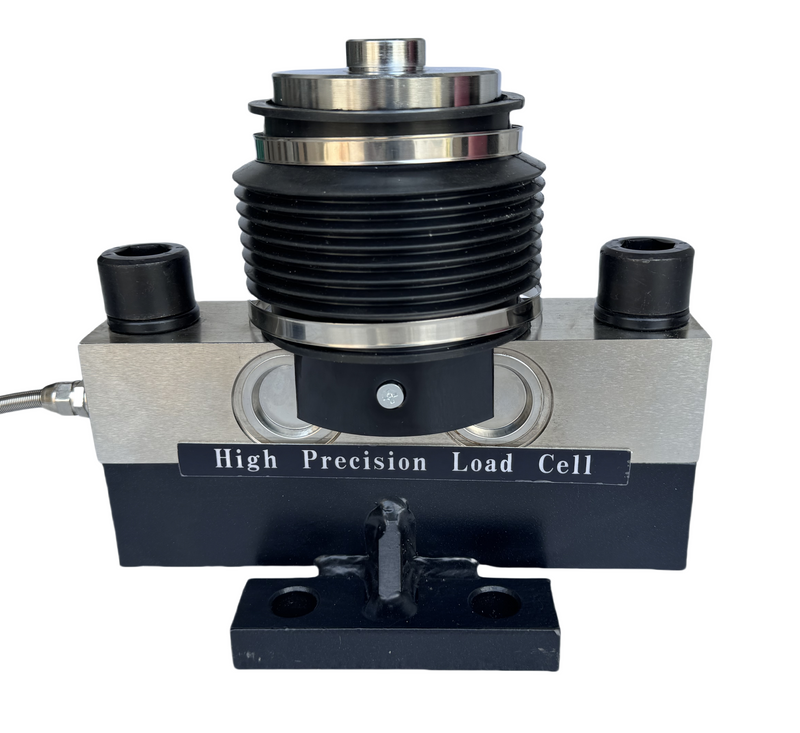

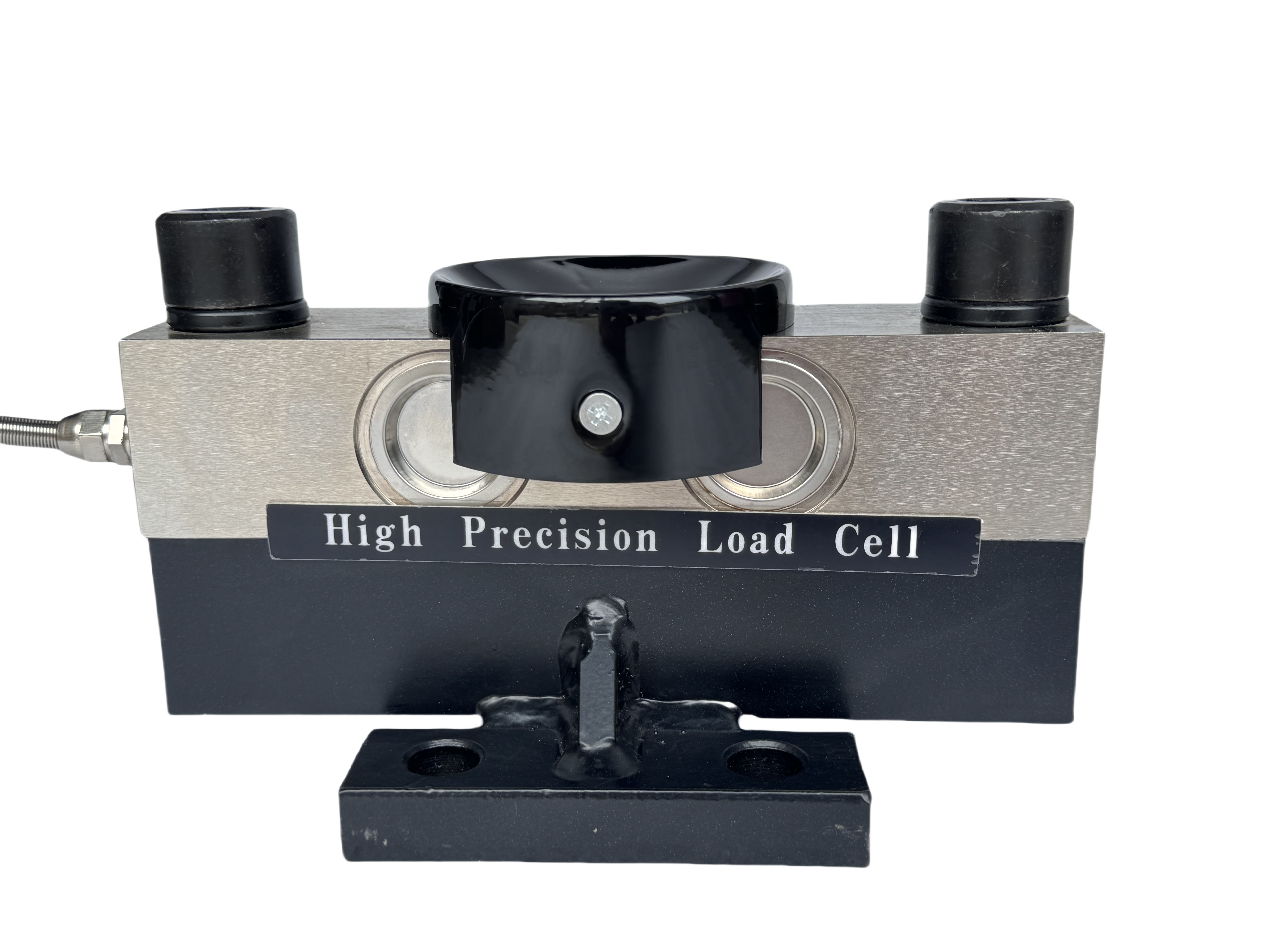

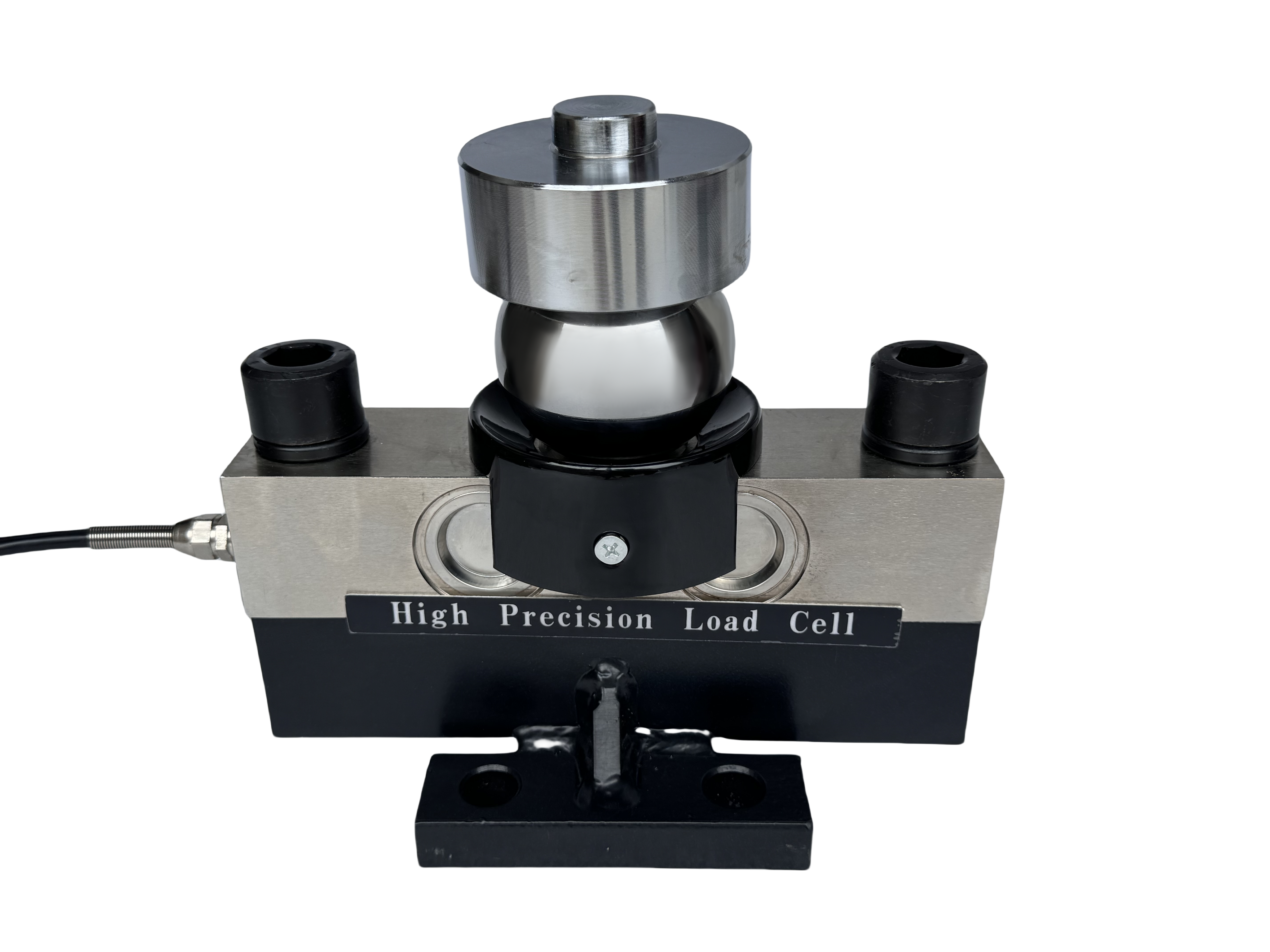

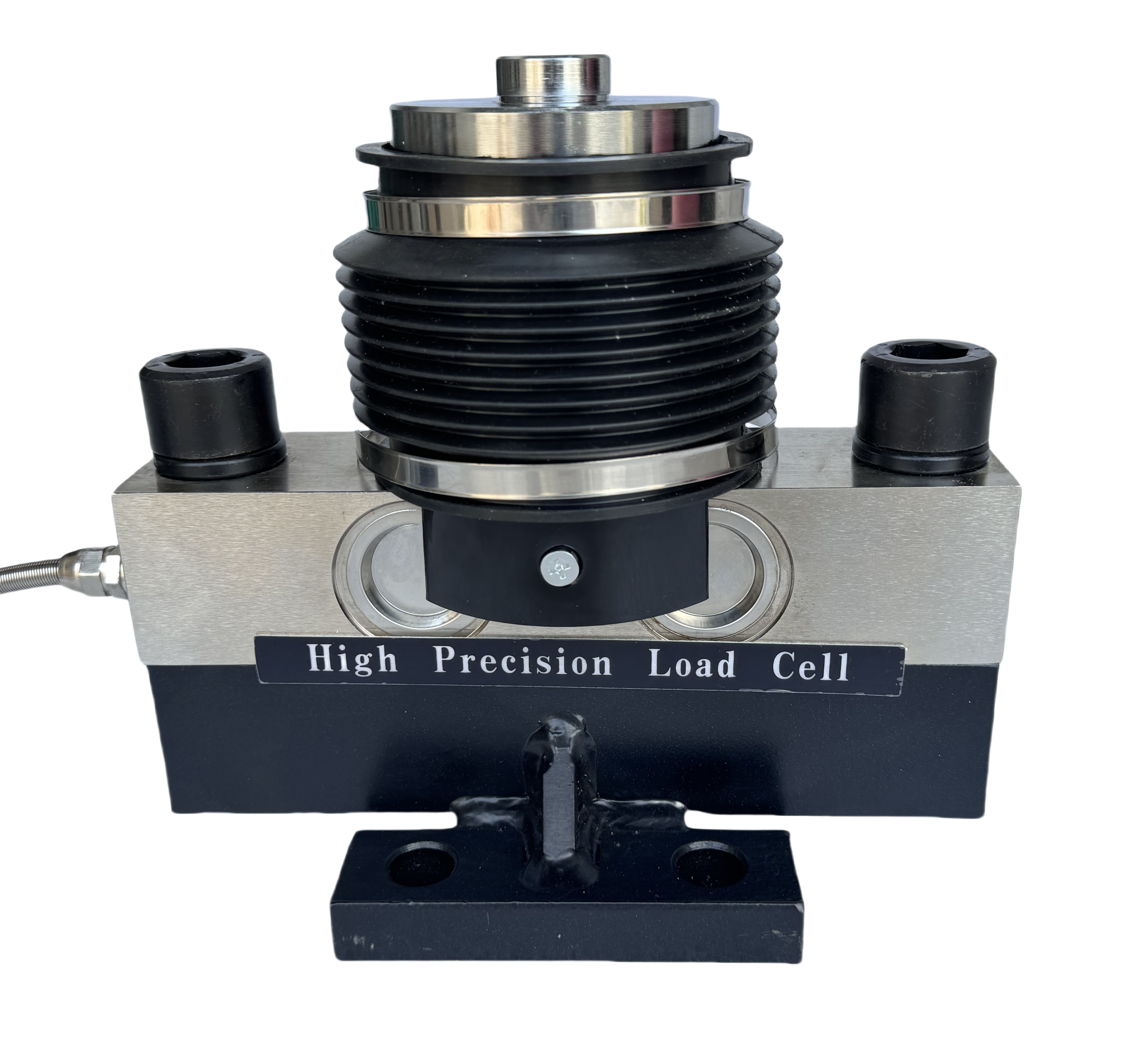

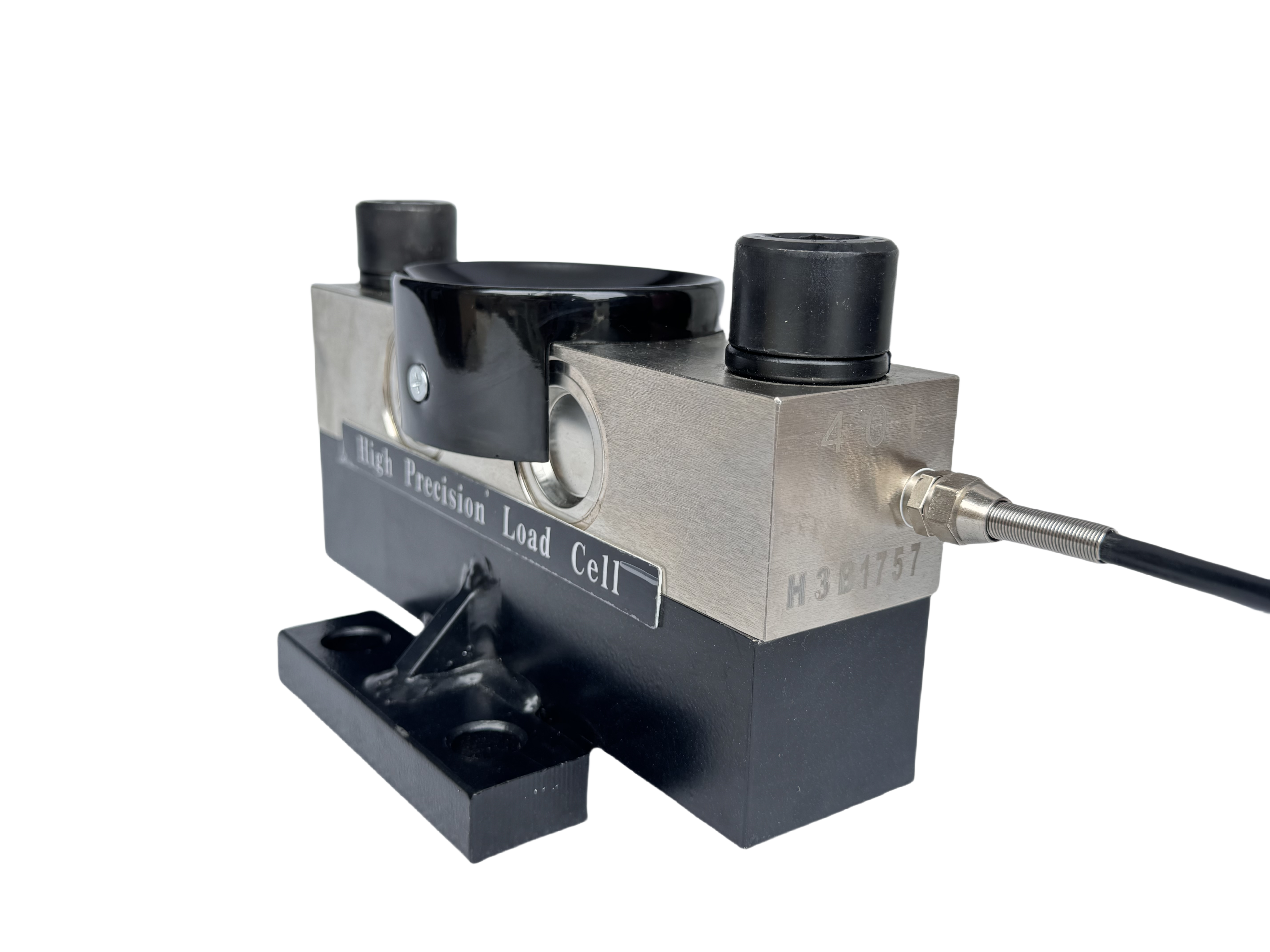

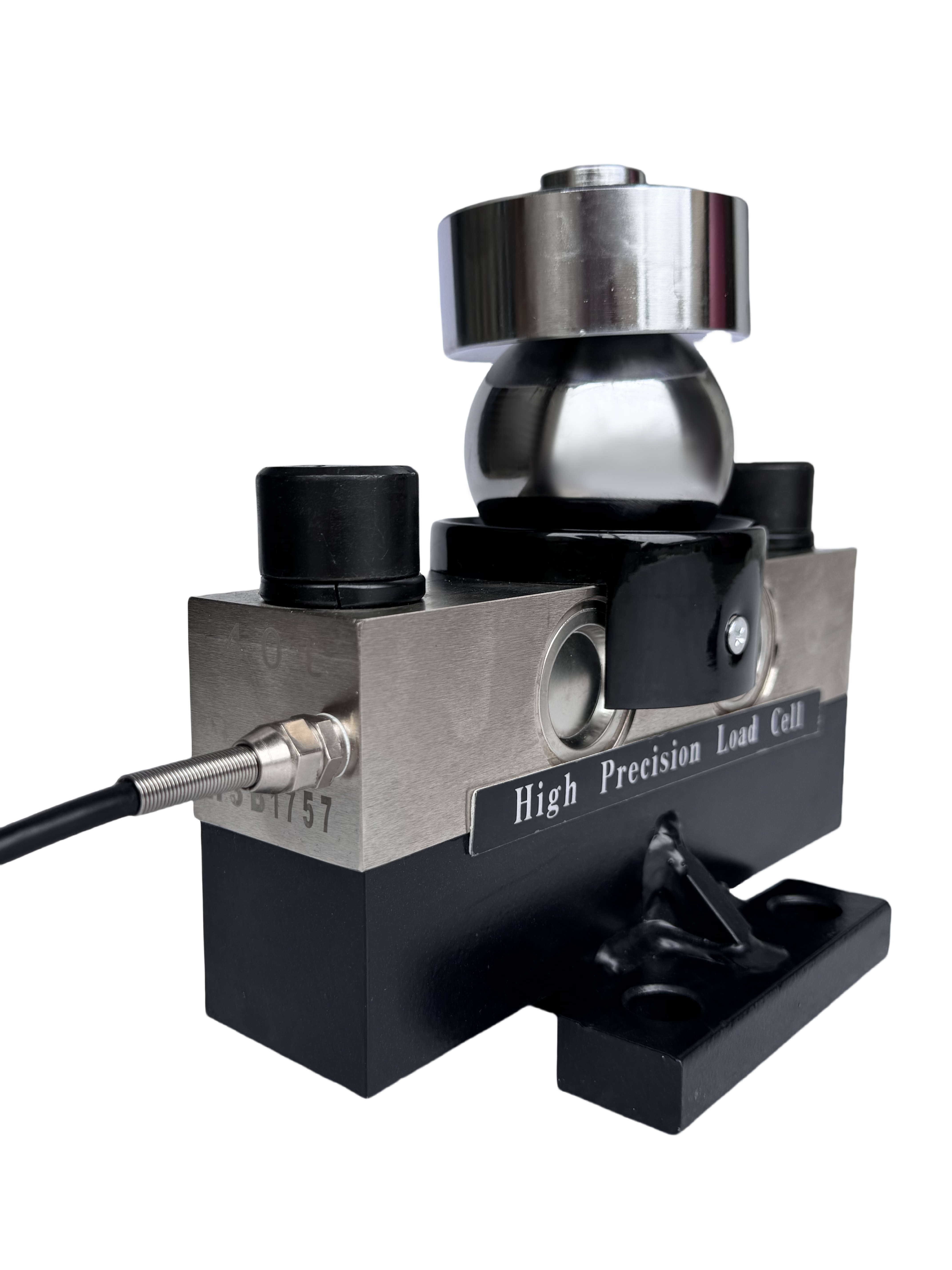

A-DESB01 Double ended shear beam load cell
Description
Unique bridge structure，cup and steel ball mounted，Self-resetting and centering，good side force resistance and shock resistance. Moisture proof sealed，ideal for hostile environment，Simple to install，easy to use，good interchangeability suitable for electronic truck scale，railroad scale，hopper scale and various special scales.
Application
Truck scale
Railroad scale
Hopper scale
Storage scale
Main Dimensions and Accessories
CAPACITY | L | L1 | L2 | H | H1 | H2 | Ø | Ø1 | W | W1 | T | T1 | |
10;20 ;25; 30;40t | mm | 240 | 125 | 80 | 229.3 | 11 | 20 | 88 | 30 | 135 | 100 | 4-Ø18 | 2-M24 |
(inch) | 9.45 | 4.92 | 3.15 | 8.85 | 0.43 | 0.79 | 3.46 | 1.18 | 5.31 | 3.94 | |||
40;50T | mm | 340 | 160 | 124 | 261 | 11 | 20 | 98 | 40 | 160 | 124 | 4-Ø21 | 4-M24 |
(inch) | 13.38 | 6.30 | 4.88 | 10.28 | 0.43 | 0.79 | 3.86 | 1.57 | 6.30 | 4.88 |
Specifications
Capacity | 10～50t | Input resistance | 750±15Ω |
Rated output | 2.0mV/V±0.1% | Output resistance | 702±3Ω |
Total error | 0.03,C3 | Safe overload | 150%F.S |
Creep in 30 minutes | <±0.02%F.S | Ultimate overload | 300%F.S |
Temperature effect span | <±0.02%F.S/10℃ | Excitation voltage | 10V AC/DC |
Temperature effect zero | <±0.02%F.S/10℃ | Maximum excitation voltage | 15V AC/DC |
Compensated temperature range | -10～+40℃ | Insulation resistance | ≥5000MΩ |
Operating temperature range | -30～+70℃ | Environmental protection | IP68 |
Zero balance | ±1%F.S | Material Allow steel | |
Cable: 8m@10t; 10m@15t; 12m/16m@20t&25t&30t&40t; 16m@50t Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) | |||
