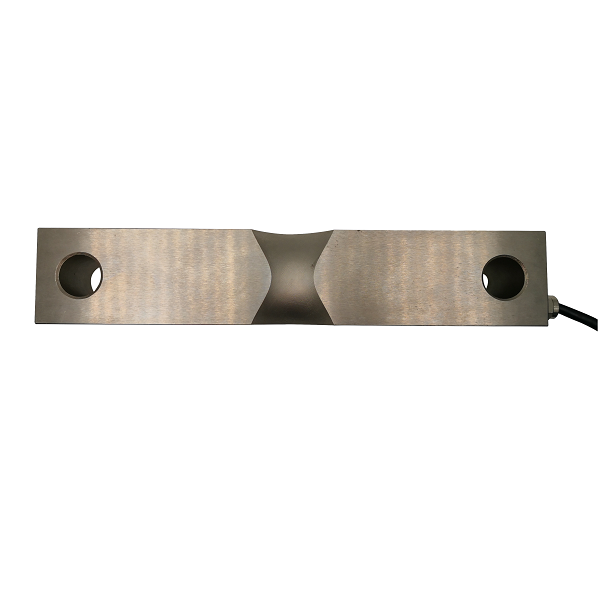

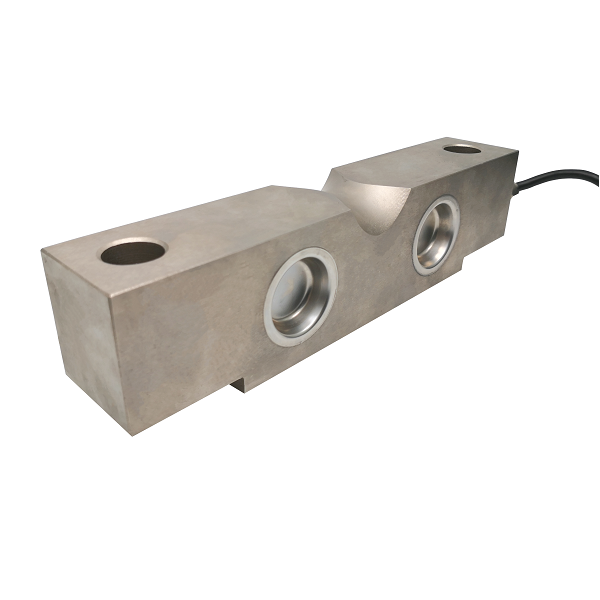

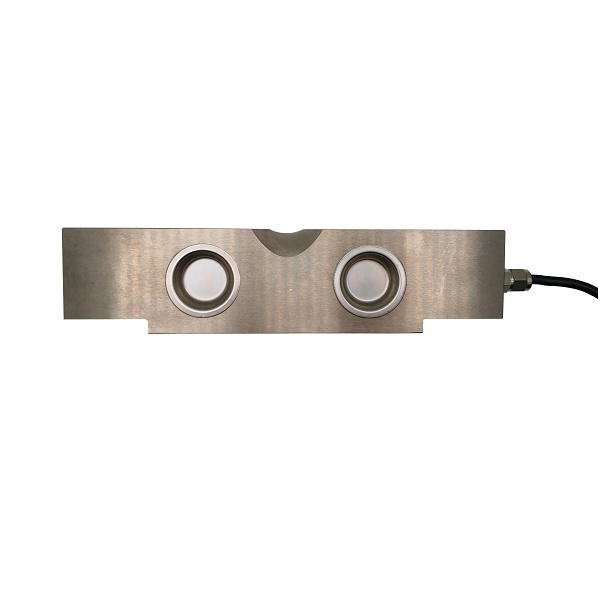

A-DESB03 Double Ended Shear Beam load cell

DESB03-ZL

Description

A-DESB03 double ended shear beam load cell have cambered surface loading, high precision and high reliability. It's easy to install and change.



Applications

  • Railway scale

  • Truck scale

  • Axle wheel scale

  • Floor scale

  • Warehouse scale



Main Dimensions and Accessories(mm)

 DESB03-SIZE

Size/mm

Capacity

10-25klb

40klb

50-75klb

L

196.9

260.4

260.4

L1

165.1

215.9

215.9

L2

125.1

162.4

162.4

L3

42.9

49.3

62

H

49.3

62

74.7

H1

43.2

53.3

67.3

R1

19.1

25.4

25.4

R2

22.9

28.5

34.8

ФC

17.3

21

27



Specifications

Capacity

10~75klb

Input resistance

750±10Ω

Rated output

3.0mV/V±0.1%

Output resistance

702±3Ω

Total error

0.03,C3

Safe overload

150%F.S

Creep in 30 minutes

<±0.02%F.S

Ultimate overload

200%F.S

Temperature effect span

<±0.02%F.S/10℃

Excitation voltage

10V AC/DC

Temperature effect zero

<±0.02%F.S/10℃

Maximum excitation voltage

15V AC/DC

Compensated temperature range

-10~+40℃

Insulation resistance

≥5000MΩ

Operating temperature range

-30~+70℃

Environmental protection

IP68

Zero balance

±1%F.S

Material                 Allow steel

Cable: 10m@10,20,25,40klb;   16m@50,60,75klb

Wring: +Exc (Red) ;-Exc   (Black);+Sig   (Green);-Sig   (White)
