A-DESB06
ANE
alloy steel

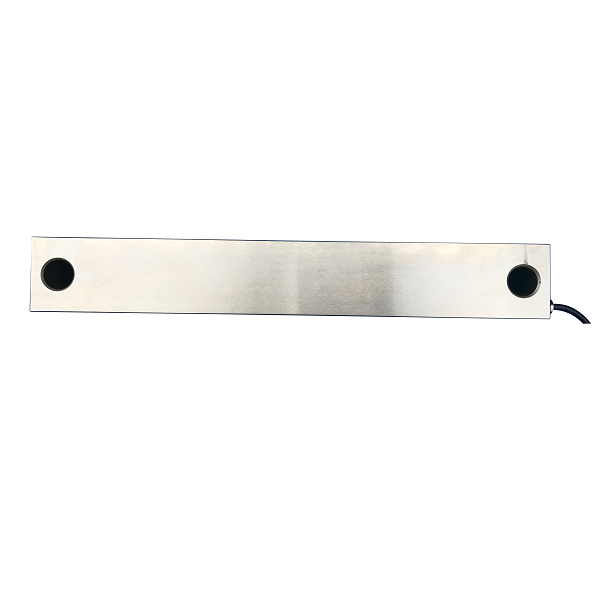

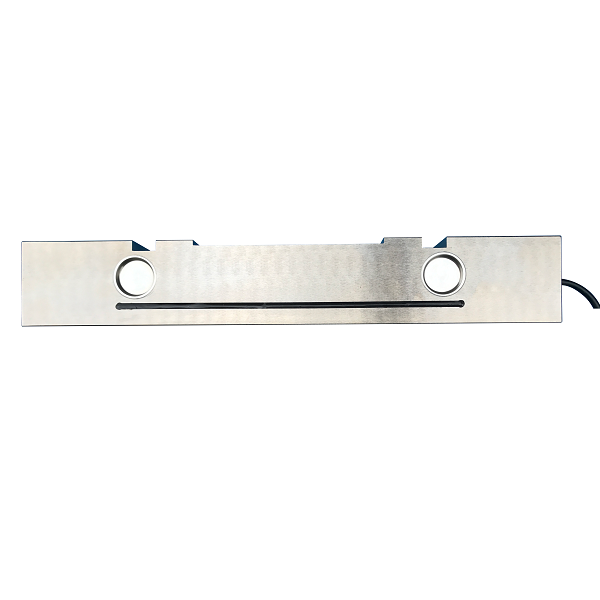

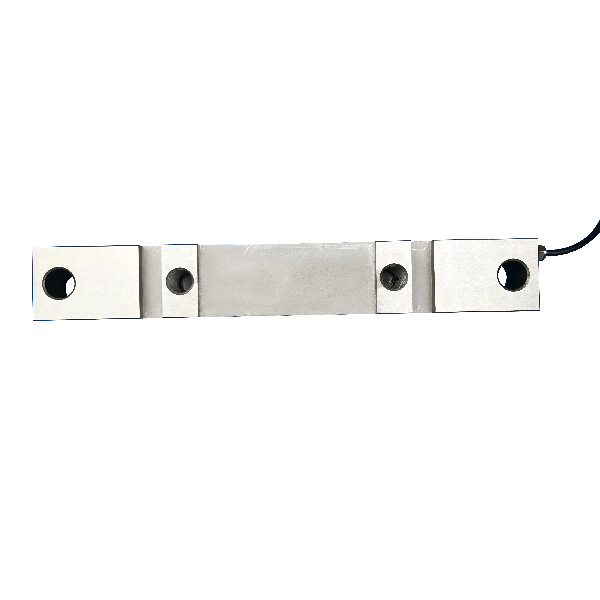

A-DESB06 Double Ended Shear Beam load cell
Description
A-DESB06 double ended shear beam load cell have Simple and reliable load bearing, easy to installation and changing, suitable for various railway scale
Main Dimensions and Accessories(mm)
Specifications
Capacity | 12.5, 20, 30 ton | ||
Sensitivity | 2.0±0.002mV/V | Input resistance | 750±10Ω |
Total error | ±0.3%F.S | Output resistance | 702±3Ω |
Creep in 30 minutes | <±0.03%F.S | Safe overload | 150%F.S |
Temperature effect span | <±0.02%F.S/10℃ | Excitation voltage | 10 ~12V DC |
Temperature effect zero | <±0.02%F.S/10℃ | Maximum excitation voltage | 15V DC |
Compensated temperature range | -10～+40℃ | Insulation resistance | ≥5000MΩ |
Operating temperature range | -30～+70℃ | Environmental protection | IP67/68 |
Zero balance | ±1%F.S | Material Alloy steel | |
Cable: 12 m Wring: +Exc (Red) ;－Exc (Black);＋Sig (Green);－Sig (White) | |||
