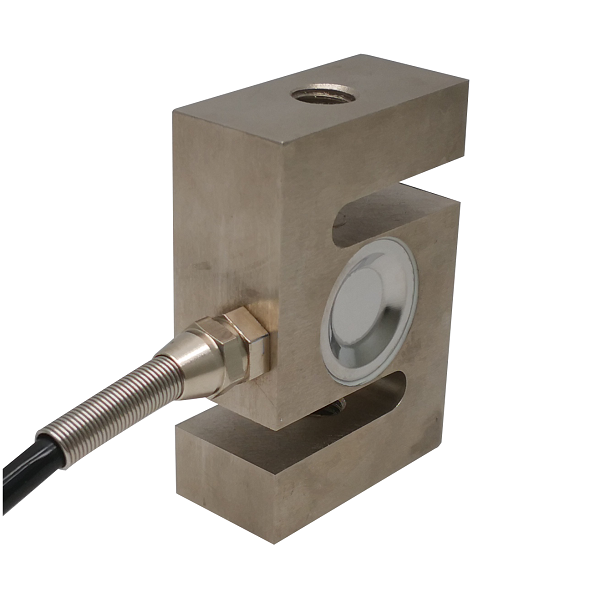

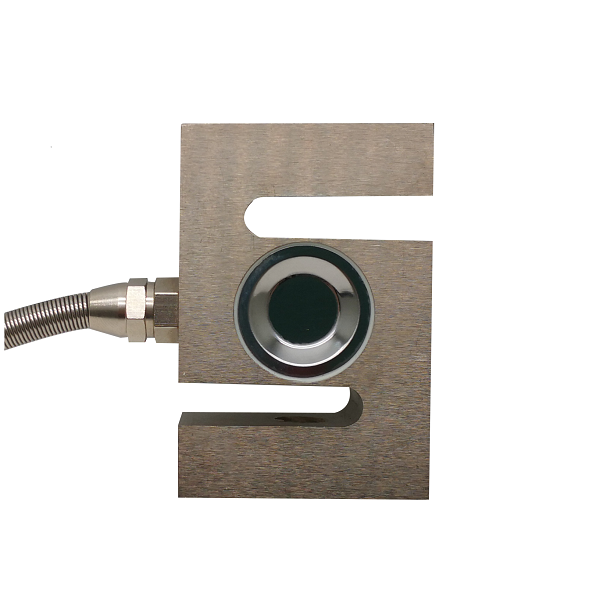

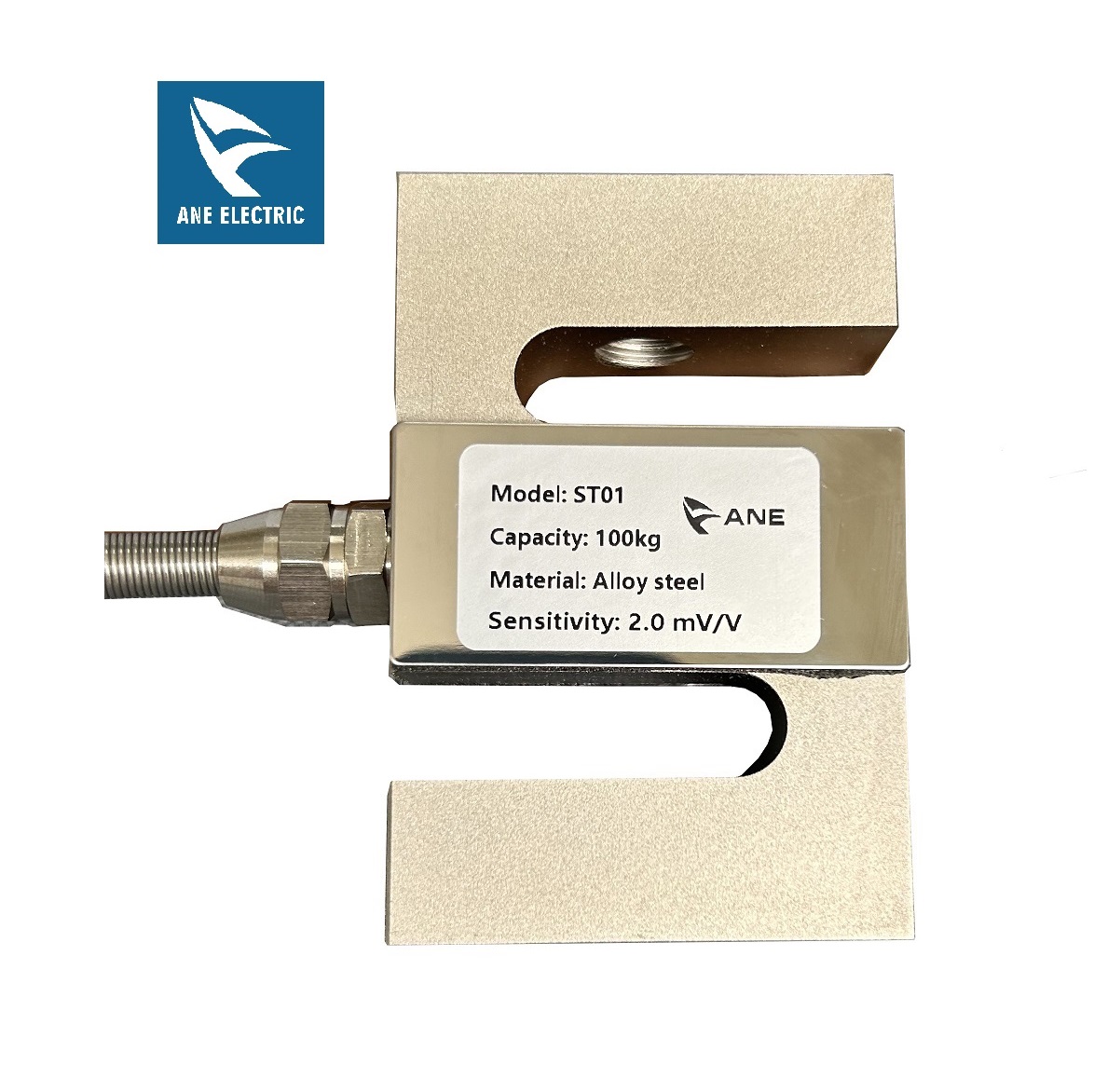

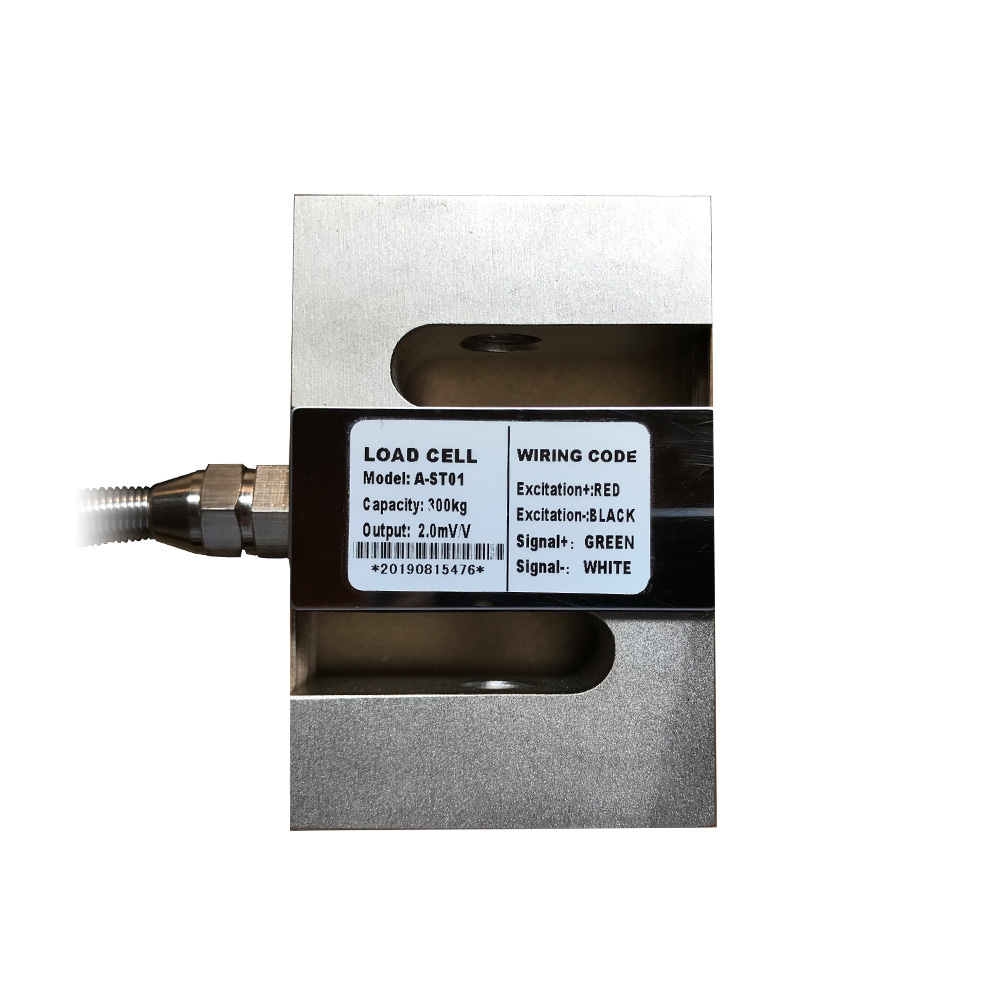

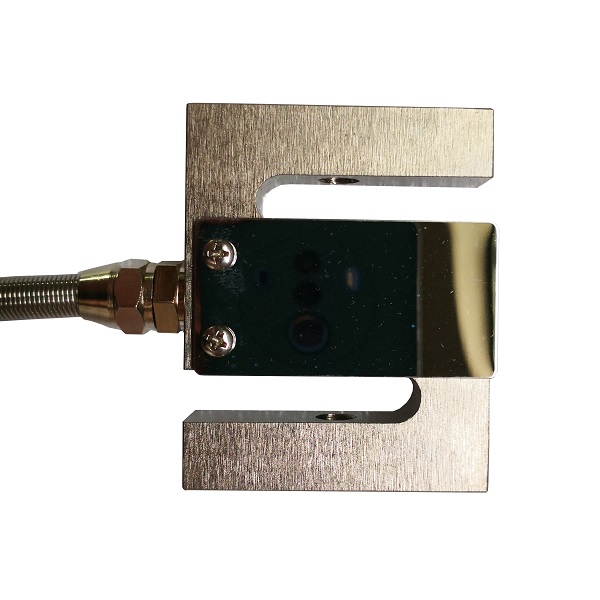

A-ST01 S type load cell
Description
Aluminum load cell, it is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suitable for electronic top scale, floor scale and other weighing equipment.
Application
Electro-mechanical conversion scales
Silo/hopper/tank weighing
Fork-lift scales
Dosing/filling
Tensile/pulling force measurement
Main Dimensions and Accessories(mm)
10~500kg
1~10ton
Capacity | Size(mm) | |||
Kg | A | B | C | M |
10~50 | 50.8 | 12.7 | 63 | M8X1.25 |
100~500 | 50.8 | 19 | 76.2 | M12×1.75 |
1000 | 50.8 | 25.4 | 76.2 | M12×1.75 |
2000 | 50.8 | 25.4 | 76.2 | M16×2.0 |
3000~5000 | 76.2 | 25.4 | 108 | M18×1.5 |
Specifications
Capacity | 0.01~5t | Zero balance | ±1%F.S |
Rated output | 2.0, 3.0mV/V±0.1% | Input resistance | 380±10Ω |
Accuracy class | 0.03,0.05 | Output resistance | 350±5Ω |
Non-linearity | 0.03%F.S | Safe overload | 150%F.S |
Hysteresis | 0.03%F.S | Ultimate overload | 200%F.S |
Creep in 30 minutes | 0.03%F.S | Excitation voltage | 10~12V DC |
Temperature effect span | 0.02%F.S/10℃ | Maximum excitation voltage | 15V DC |
Temperature effect zero | 0.02%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10~+40℃ | Environmental protection | IP68 |
Operating temperature range | -30~+70℃ | Material Alloy steels/Stainless steel |
A-ST01 S type load cell
Description
Aluminum load cell, it is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suitable for electronic top scale, floor scale and other weighing equipment.
Application
Electro-mechanical conversion scales
Silo/hopper/tank weighing
Fork-lift scales
Dosing/filling
Tensile/pulling force measurement
Main Dimensions and Accessories(mm)
10~500kg
1~10ton
Capacity | Size(mm) | |||
Kg | A | B | C | M |
10~50 | 50.8 | 12.7 | 63 | M8X1.25 |
100~500 | 50.8 | 19 | 76.2 | M12×1.75 |
1000 | 50.8 | 25.4 | 76.2 | M12×1.75 |
2000 | 50.8 | 25.4 | 76.2 | M16×2.0 |
3000~5000 | 76.2 | 25.4 | 108 | M18×1.5 |
Specifications
Capacity | 0.01~5t | Zero balance | ±1%F.S |
Rated output | 2.0, 3.0mV/V±0.1% | Input resistance | 380±10Ω |
Accuracy class | 0.03,0.05 | Output resistance | 350±5Ω |
Non-linearity | 0.03%F.S | Safe overload | 150%F.S |
Hysteresis | 0.03%F.S | Ultimate overload | 200%F.S |
Creep in 30 minutes | 0.03%F.S | Excitation voltage | 10~12V DC |
Temperature effect span | 0.02%F.S/10℃ | Maximum excitation voltage | 15V DC |
Temperature effect zero | 0.02%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10~+40℃ | Environmental protection | IP68 |
Operating temperature range | -30~+70℃ | Material Alloy steels/Stainless steel |
