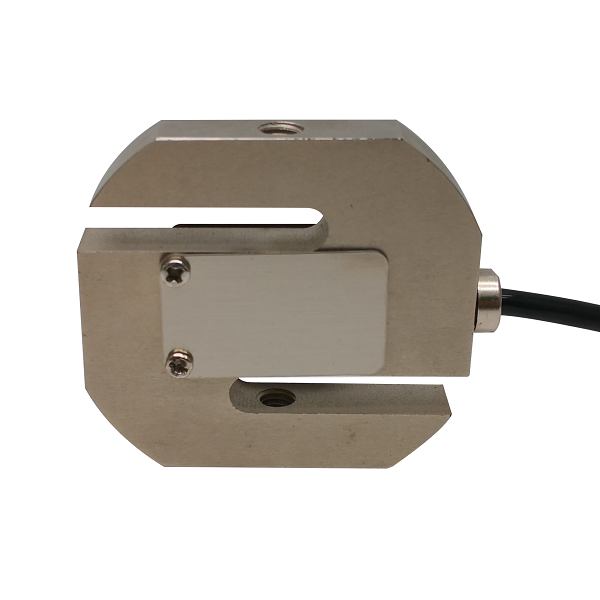

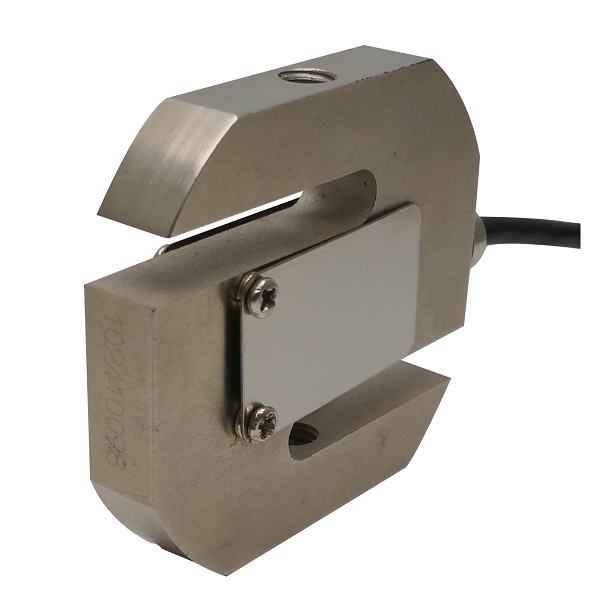

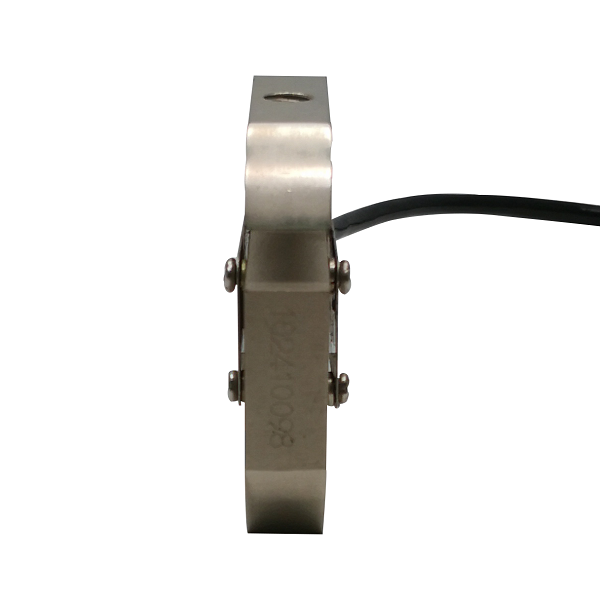

A-ST02 single point load cell
Description
The S-type load cell, as the name indicates, can be easily identified by S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized
Application
Electro-mechanical conversion scales
Silo/hopper/tank weighing
Crane scales
Fork-lift scales
Dosing/filling
Universal material tester
Tensile/pulling force measurement
Main Dimensions and Accessories(mm)
Capacity(kg) | D | L(mm) |
30；50；75；100；150 | M8 | 12 |
200；250；300；500 | M12 | 20 |
700；1000 | M12 | 25 |
Capacity(t) | D | L | H |
1.2; 1.5; 2; 2.5; 3; 5 | M20 | 32 | 90 |
7.5 | M24 | 40 | 90 |
10 | M30*2 | 50 | 110 |
Specifications
Capacity | 0.3～10t | Zero balance | ±1%F.S |
Rated output | 2.0, 3.0mV/V±0.1% | Input resistance | 380±10Ω |
Accuracy class | 0.03,0.05 | Output resistance | 350±5Ω |
Non-linearity | 0.03%F.S | Safe overload | 150%F.S |
Hysteresis | 0.03%F.S | Ultimate overload | 200%F.S |
Creep in 30 minutes | 0.03%F.S | Excitation voltage | 10~12V DC |
Temperature effect span | 0.015%F.S/10℃ | Maximum excitation voltage | 15V DC |
Temperature effect zero | 0.02%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10～+40℃ | Environmental protection | IP68 |
Operating temperature range | -30～+70℃ | Material Alloy steels/Stainless steel | |
