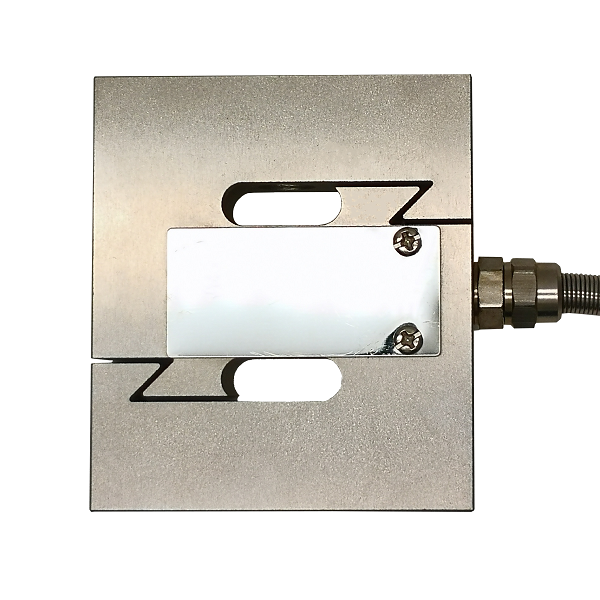

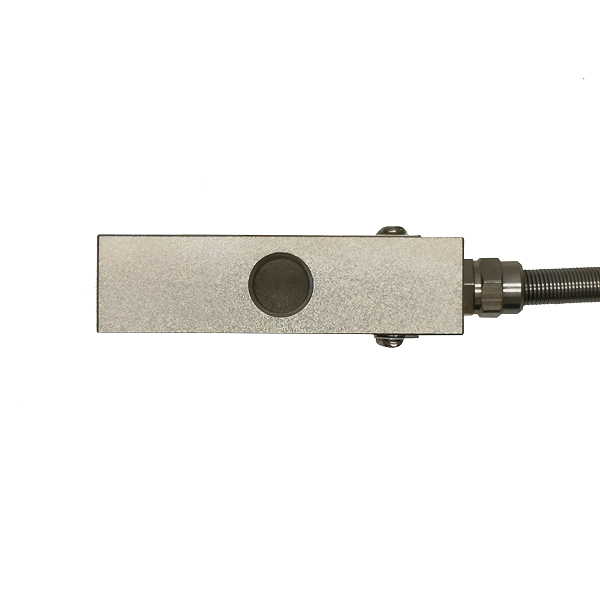

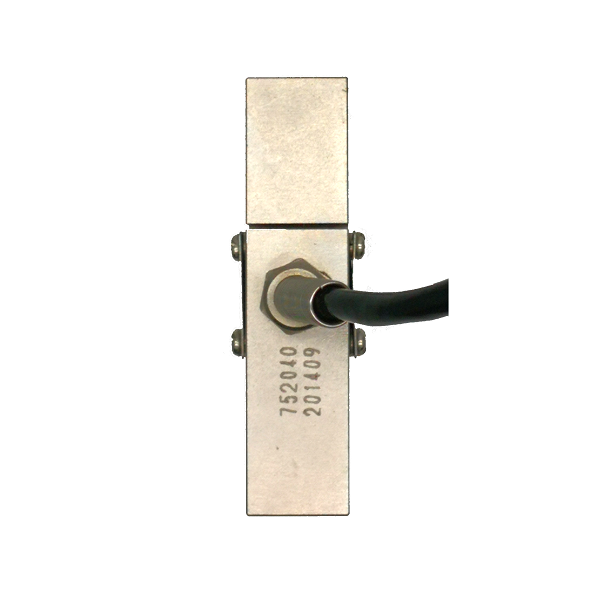

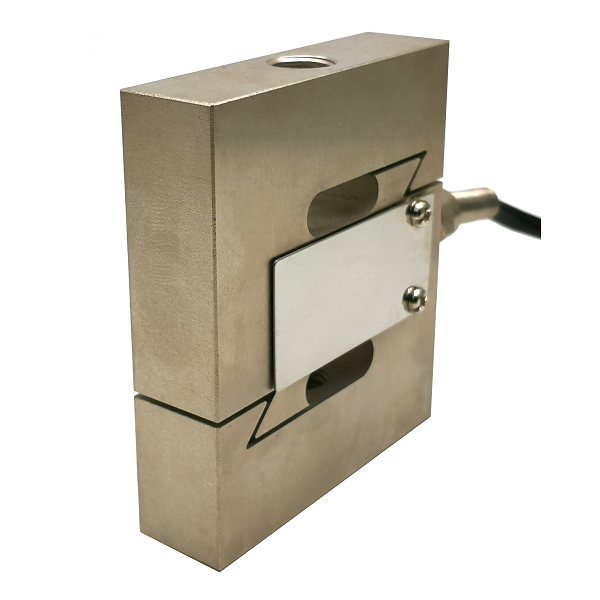

A-ST03 S type tension load cell
Description
A-ST03 S-type load cell has high accuracy and wide measuring range. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized
Application
Electro crane scales
Blending scale
Packing scales
Electromechanical scales
Special testing device
Main Dimensions and Accessories(mm)
Capacity | Size | |||
Ton | B | W | H | T |
0.1, 0.2, 0.3, 0.5, 0.75 | 70 | 19 | 80 | M12 |
1, 1.5 | 70 | 25 | 80 | M12 |
2, 3, 5 | 95 | 25 | 108 | M18 X1.5 |
7.5, 10 | 130 | 51 | 178 | M30 X2 |
15, 20 | 160 | 60 | 190 | M39 X2 |
Specifications
Capacity | 0.1～20t | Zero balance | ±1%F.S |
Rated output | 2.0mV/V±0.1% | Input resistance | 400±10Ω |
Accuracy class | 0.03,0.05 | Output resistance | 350±5Ω |
Non-linearity | 0.02%F.S | Safe overload | 150%F.S |
Hysteresis | 0.02%F.S | Ultimate overload | 200%F.S |
Creep in 30 minutes | 0.02%F.S | Excitation voltage | 10~12V DC |
Temperature effect span | 0.02%F.S/10℃ | Maximum excitation voltage | 15V DC |
Temperature effect zero | 0.02%F.S/10℃ | Insulation resistance | ≥5000MΩ |
Compensated temperature range | -10～+40℃ | Environmental protection | IP68 |
Operating temperature range | -30～+70℃ | Material Alloy steels/Stainless steel | |
Cable, 4~6m
+Exc (Red) ; －Exc (Black); ＋Sig (Green); －Sig (White)
