A-WCS-01
ANE
Plastic/Alloy steel
A-WCS01 Wireless crane scale
Main Dimensions and Accessories(mm)
Cap | Div | Min Weight | A | B | C | D | E | F | G | H | Q |
1 ton | 0.2 kg | 20 kg | 18 | 12 | 22 | 50 | 5 | 5 | 13 | 8 | 6 |
3 ton | 0.5 kg | 40 kg | 18 | 12 | 22 | 50 | 5 | 5 | 13 | 8 | 6 |
5 ton | 1 kg | 60 kg | 18 | 12 | 22 | 57 | 7.8 | 5 | 14 | 8 | 6 |
10 ton | 2 kg | 80 kg | 25 | 11 | 28 | 65 | 9 | 6 | 23 | 11 | 7 |
Function
With zero, indexing switch, stable discrimination, LED display, automatic power saving

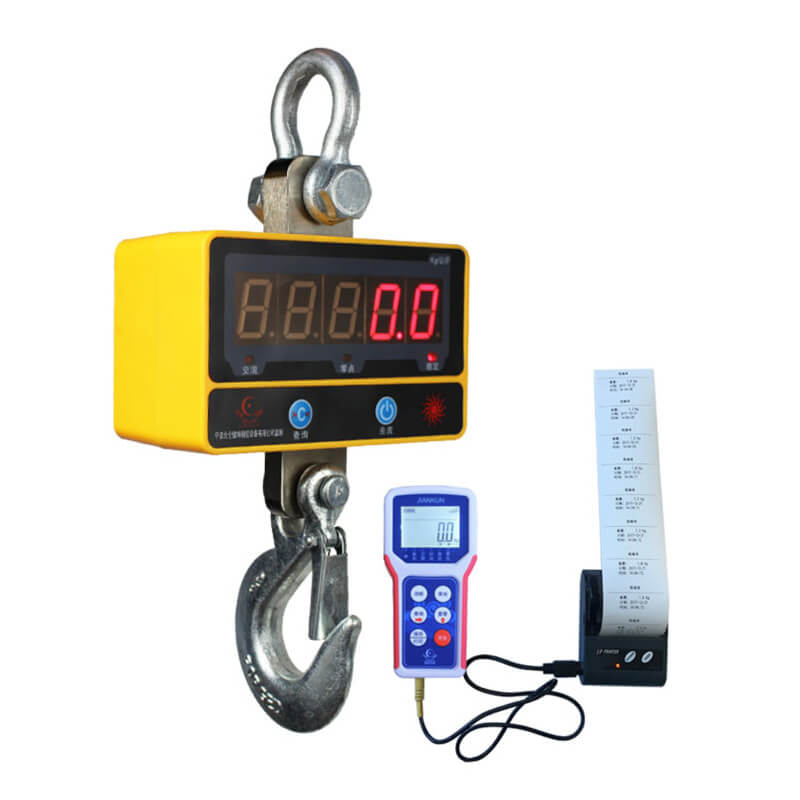

Docking APP, and handheld instruments, you can achieve weighing records query print and overload alarm

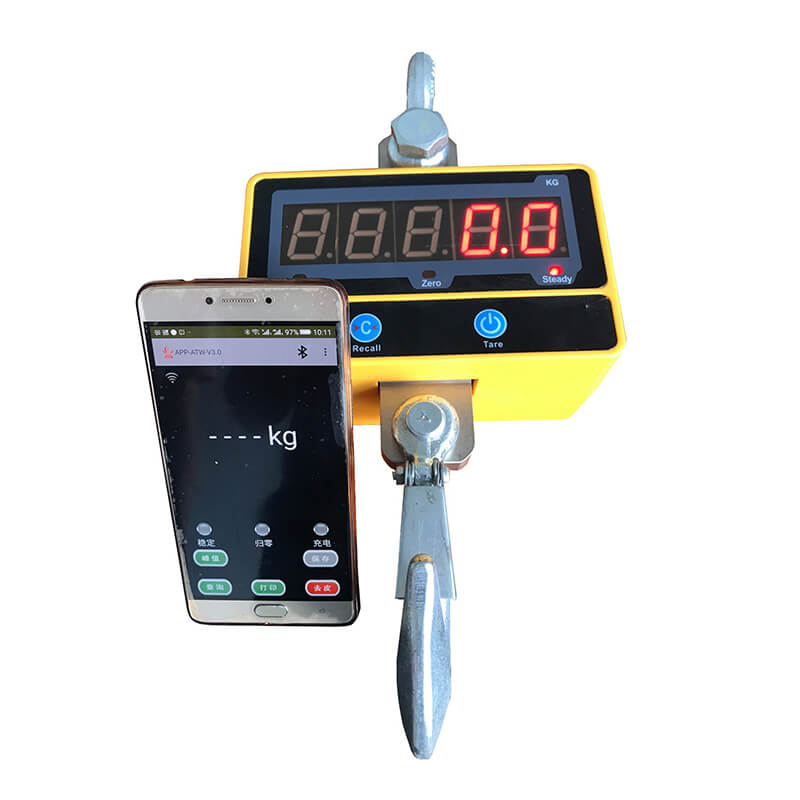

Optional features: Wired or wireless external large-screen display, wireless connection to the phone, connecting print and other functions
Flash disk port optional
Reading stable time ≤ 10 seconds
Display (digital display): super bright 32mm word height 5 red LED and green LED digital display
Working environment temperature: -25 ℃ - +55 ℃
Ambient temperature (measurement test range) -10 ℃ - +40 ℃
Automatic shutdown: display zero stand for 30 minutes or a serious shortage of power will automatically shut down.
Internal charge protection circuit, using 6V2.8AH high-capacity battery.
Shell ABS plastic manufacturing, rust, light weight
