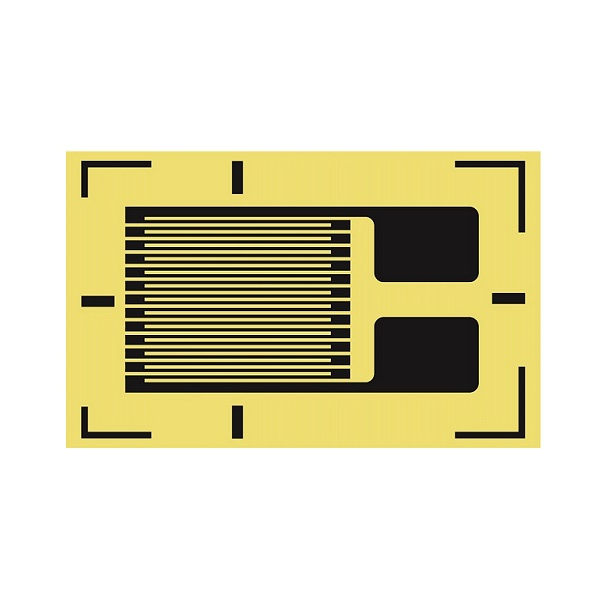

AA shape Strain Gauge

AA type High precision Strain Gauge for C3 load cell/weighing sensor/transducer
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • AA serials

  • ANE

The BHF high precision strain gauge with epoxy phenolic as substrates material and as substrates material of coating as well, copper foil as sensitive grid and entire seal structure of compression process, which have possessing functions of temperature self-retrieve, creep self-retrieve, stable performance, high resistance to moisture and humidity. Suitable for the high precision weighing sensor of C3.

Name rules

Gauge name rule








         01


Model Grid size(mm) Gage size(mm)
BHF120-0.5AA 0.5×0.5 3×2.5
BHF120-1AA 1×1 3×2.5
BHF120-2AA 2×1 4.5×2.4
BHF120-2AA 2×2 6×4
BHF120-3AA 3×2 6.6×3.5
BHF120-3AA 3×3 7.5×4.5
BHF120-4AA 4×2 8×5
BHF120-5AA 5×3 9×5
BHF120-5AA 5×2 9.6×4
BHF120-6AA 6×2 10.7×3.6
BHF120-6AA 6×4 10.5×6.3
BHF175-3AA 3×3 7.5×4.5
BHF350-1AA 1×1 3×2.5
BHF350-1AA 1×2 3×3.5
BHF350-2AA 2×2 6×4
BHF350-2AA 2×2.4 5×3.5
BHF350-2AA 2×5 5×6.5
BHF350-3AA 3×2 6.7×3.5
BHF350-3AA 3×3 7.5×4.5
BHF350-4AA 4×4 9×6
BHF350-5AA 5×3 9.5×4.5
BHF350-6AA 6×3 11×5
BHF350-6AA 6×4 11×6
BHF350-10AA 10×4 16×6
BHF500-2AA 2×1.7 6×4
BHF610-4AA 4×4 9×6
BHF650-3AA 3×3 7.5×4.5
BHF650-4AA 4×4 9×6
BHF1000-3AA 3.2×3.2 7.6×4.5
BHF1000-6AA 6×4 11×6.4
