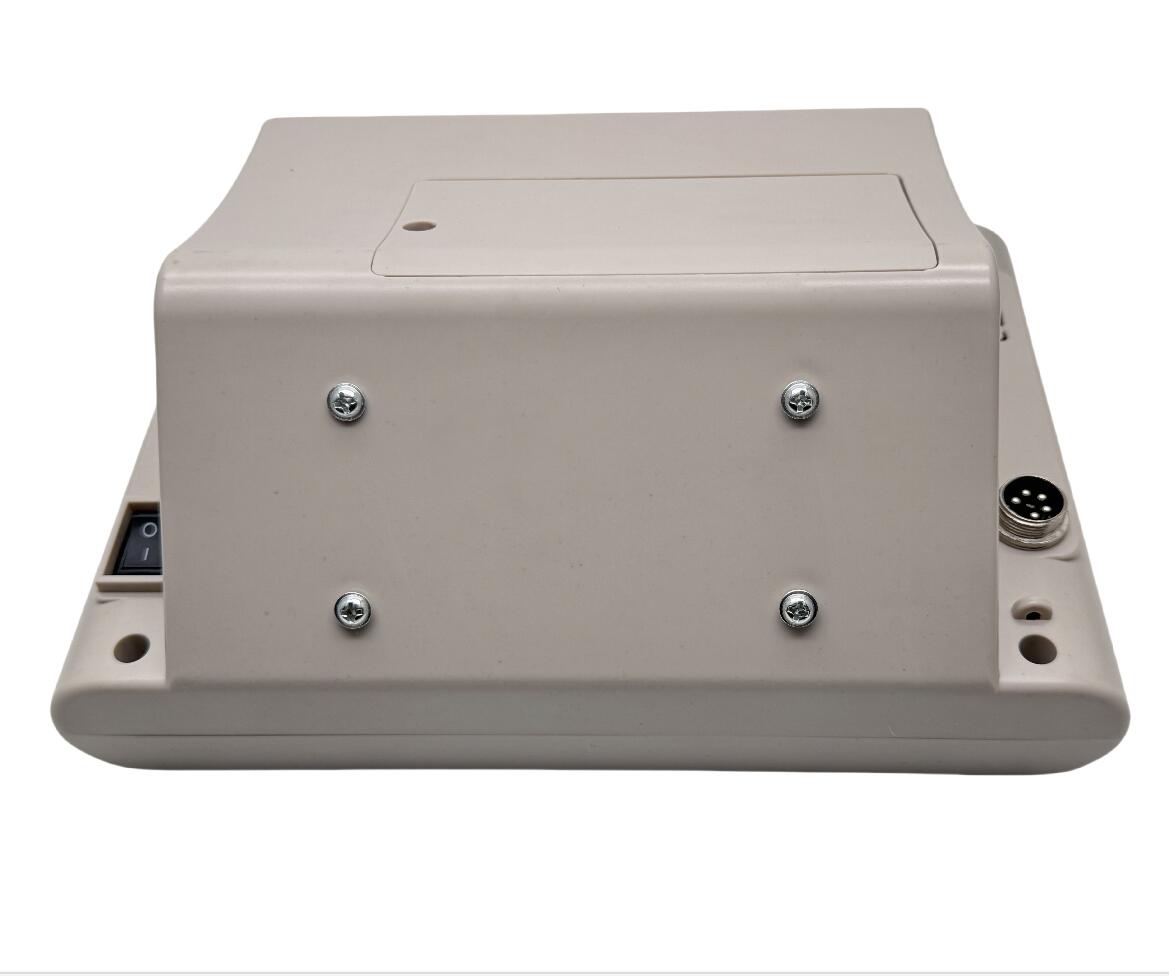

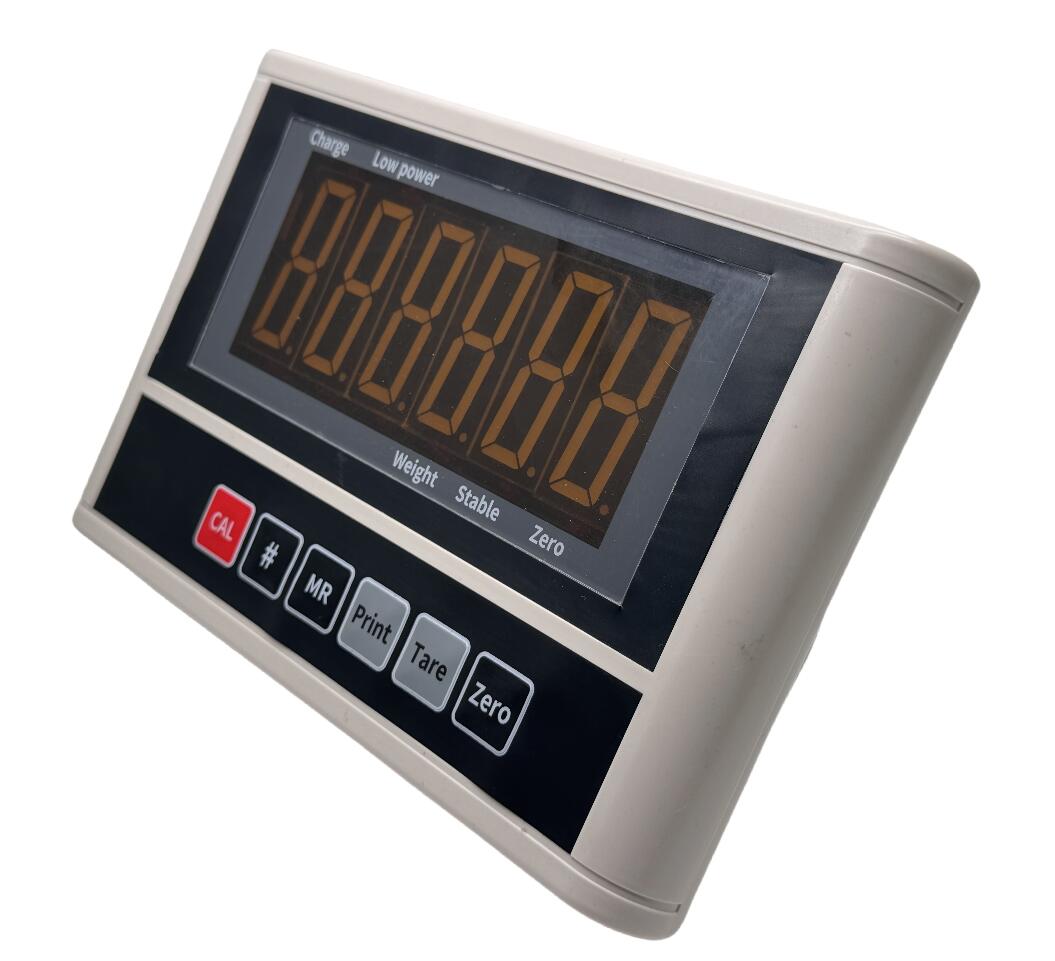

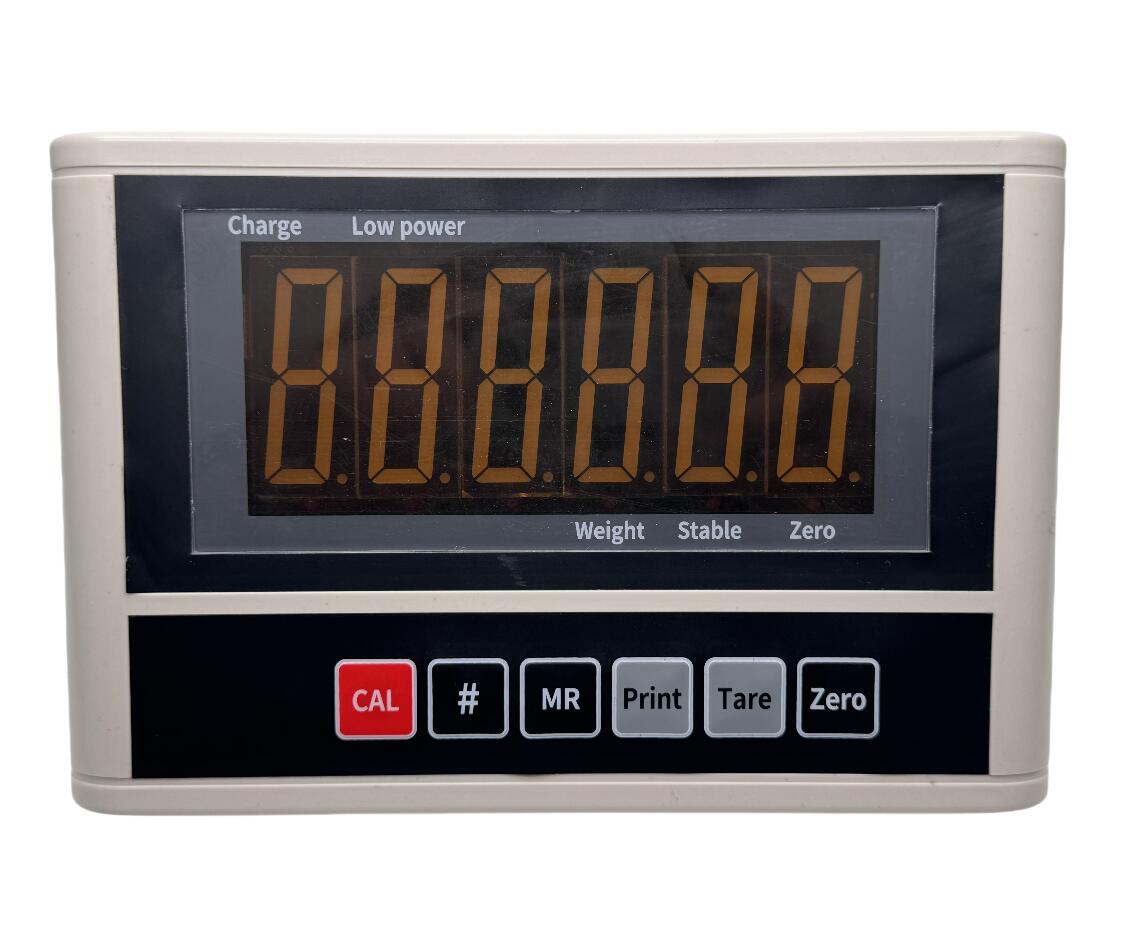

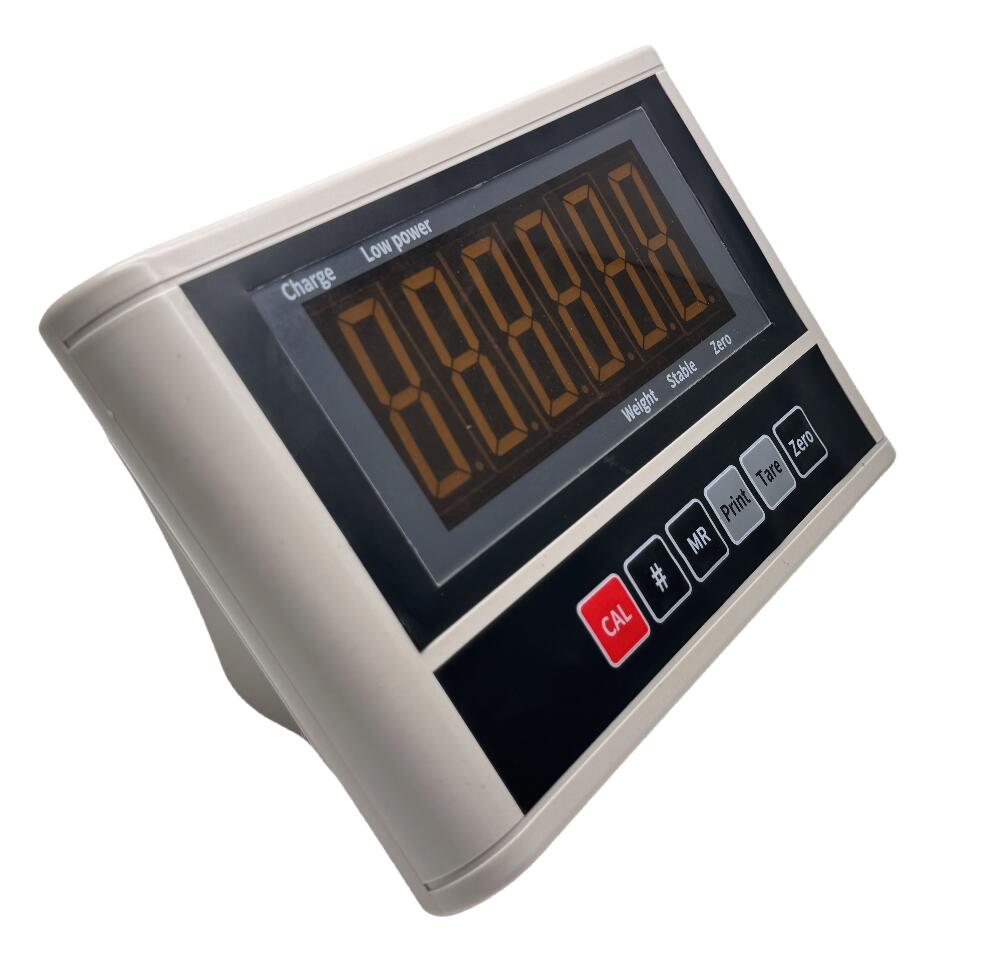

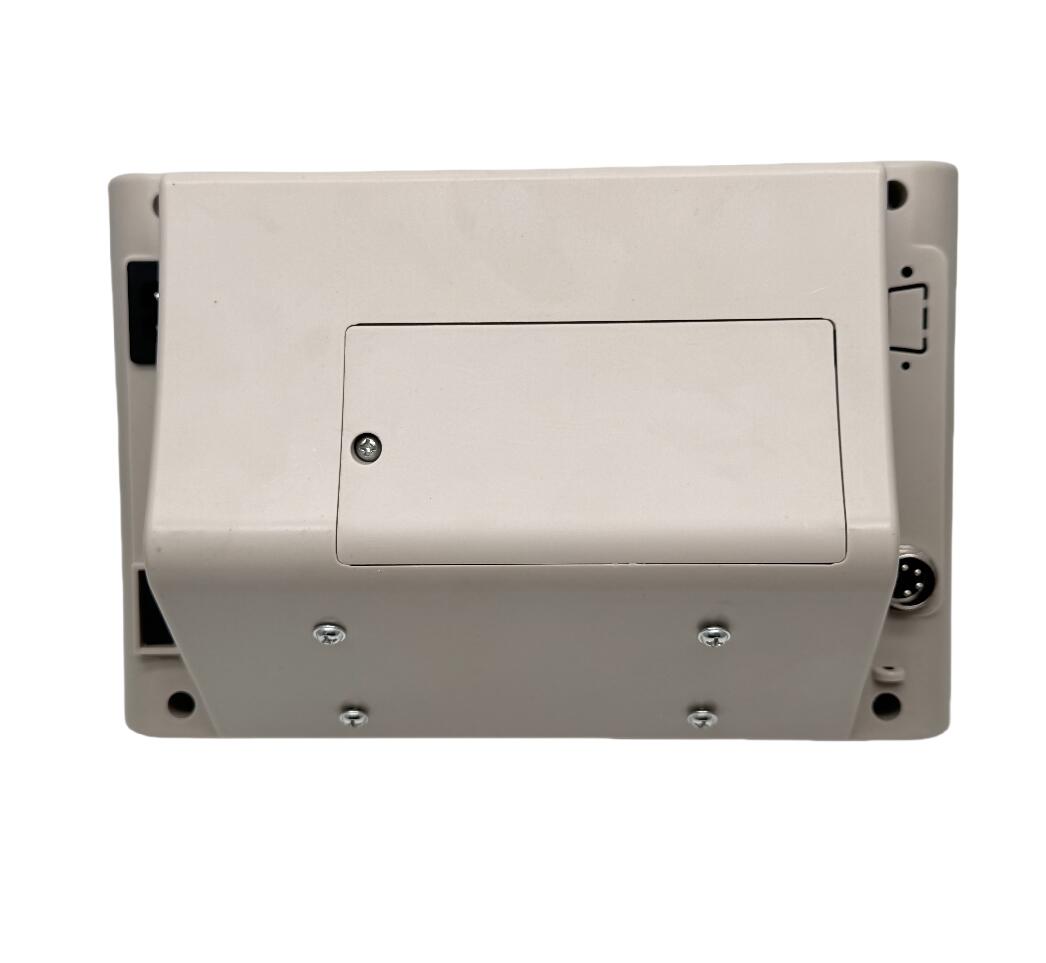

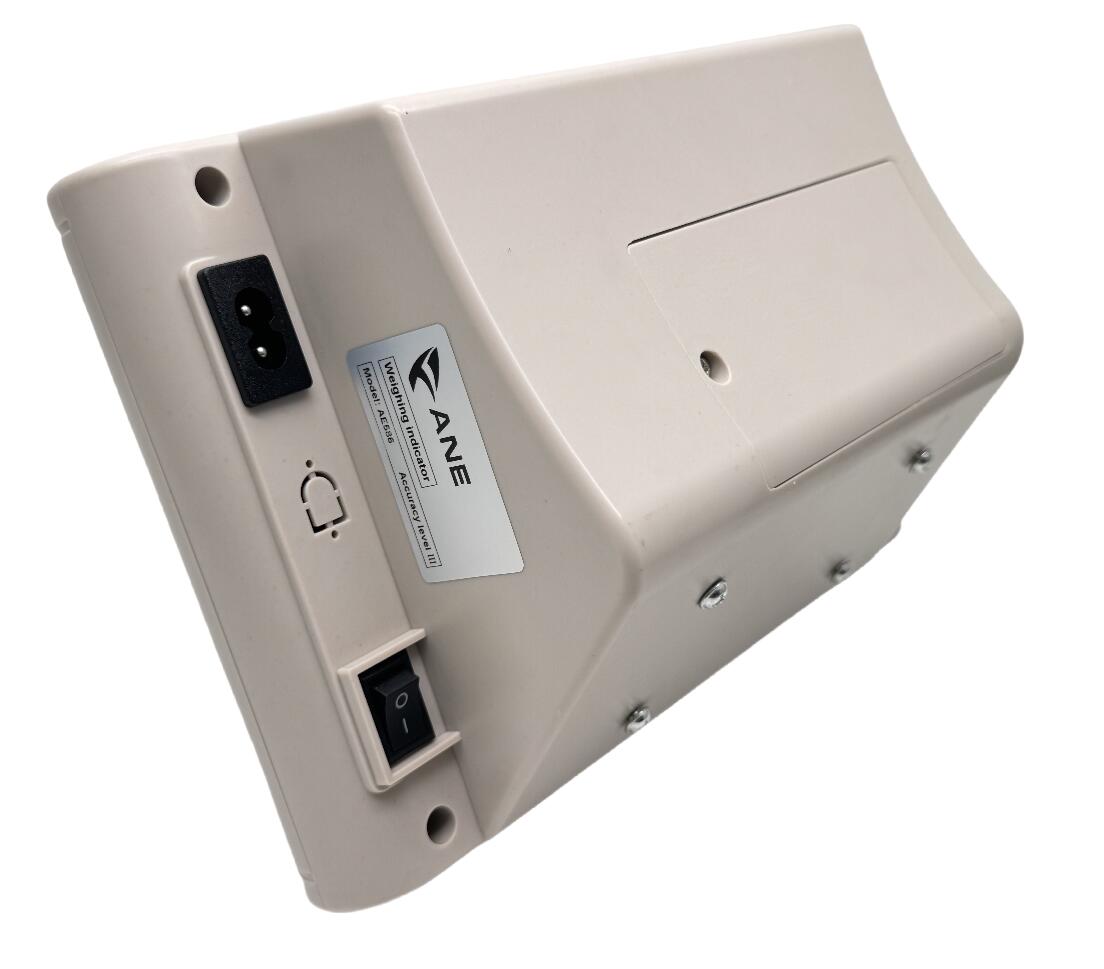

AE586 Big LED Display Weighing Indicator
Description
Weighing indicator AE586 is widely applied in electronic platform scale, electronic floor scale and so on alike static weighing system equipped with 1~4 350Ω load cell.
Feature
High precision A/D conversion with readability 1/30000
Peak value holding and average value function
Auto/Manual accumulate
High-Low limits alarm function
Auto-sleep function
Preset tare
Precision auto zoom 10-magnification function
AC/DC power supply with built-in rechargeable 6V/4AH battery
RS232 interface with selectable baud rate
With scoreboard communication interface,20mA current loop way
Technical Specifications
Precision grade: | 3 grades |
Max division: | 3000 |
Input-signal range: | -19mV~19mV |
Conversion rate: | more than 10 times/sec. |
Nonlinear: | ≤0.0015% |
Load cell connection: | able to connect with 1-4 350Ω load cell |
Division: | 1/2/5/10/20/50(selectable) |
Communication port: | RS232(serial), 20mA current loop signal to scoreboard connection |
Power supply: | DC 5V; AC220V; 50,60Hz(-2%~+2%) |
Operation temperature: | -10 °C~40 °C |
Storage/Transportation temperature: | -25 °C~55 °C |
Signal output method: | serial output, current loop signal |
Baud rate: | 600 |
Distance of transmission: | ≤200m |
Baud rate: | 600/1200/2400/4800/9600 optional |
Distance of transmission: | ≤30m |
