BS-C Series Bench Scale
ANE
Mild steel structure, stainless steel weighing pan

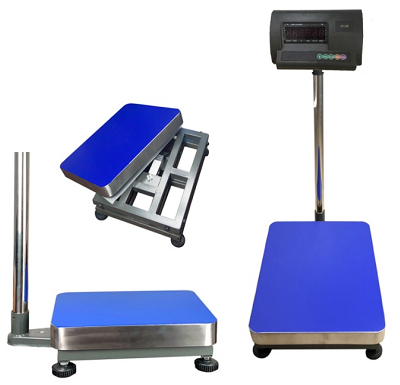

BS-C Series Electronic Bench Scale
Specifications
Capapacity:
150/300/500/800 kg
Operating environment humidity:
≤85%RH
Operating environment temperature:
-10℃~40℃
Power supply:
220V, AC/50HZ
Material:
Carbon steel structure, with 201 stainless steel platform cover
Load cell:
ZEMIC or KELI optional
Max safety overload:
120% F.S
Ultimate overload:
150% F.S
With all bolts and screws for each unit
Customized size available
MODEL | SIZE(L×W) | MAX CAPACITY | COVER THICKNESS |
BS-C3030 | 300×300 mm | 150 kg | 1.0 mm |
BS-C3040 | 300×400 mm | 150 kg | 1.0 mm |
BS-C4050 | 400×500 mm | 300 kg | 1.0 mm |
BS-C4560 | 450×600 mm | 300 kg | 1.2 mm |
BS-C5060 | 500×600 mm | 500 kg | 1.2 mm |
BS-C6080 | 600×800 mm | 500 kg | 1.5 mm |
