CLP06
ANE
STAINLESS STEEL

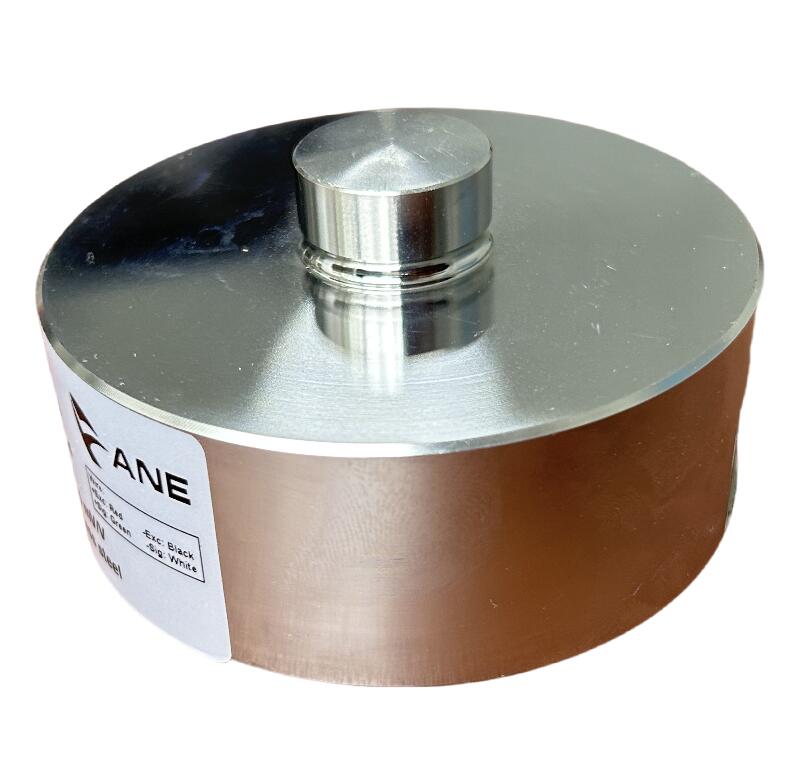

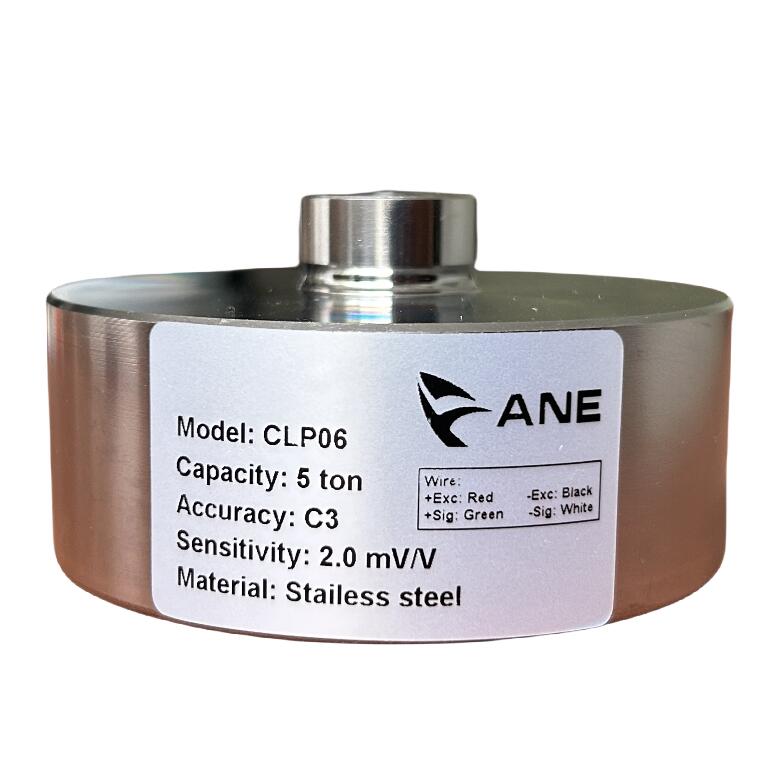

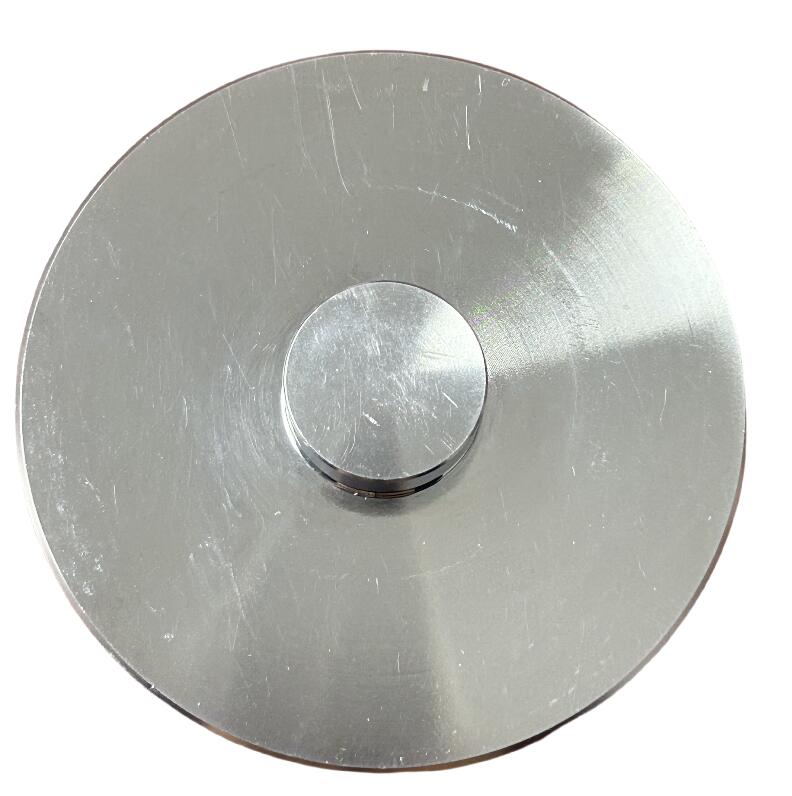

CLP06 Stainless steel low profile compression load cell
Applications
Belt conveyor scale and weight feeders
Small weighing platform
Hooper scale
Compression testing equipment
Main Dimensions(mm)
Capacity(t) | A | B | C | D | E | F | G | H |
500kg, 1t, 2t, 5t, 7.5t, 10t | 66 | 82 | 22 | 11 | 44 | 8 | M6 | 70 |
15t, 20t | 74 | 99 | 28 | 11 | 48 | 15 | M10 | 80 |
30t | 88 | 126 | 35 | 12 | 54 | 15 | M12 | 105 |
50t, 100t | 107 | 164 | 55 | 15 | 65 | 20 | M16 | 130 |
Specifications
Capacity | 50kg~100t | Input resistance | 850±20Ω | ||
Rated output | 2.0 mv/v±0.1% | Output resistance | 700±10Ω | ||
Total error | 0.05; 0.1 | Safe overload | 120%F.S | ||
Creep in 30 minutes | <±0.05%F.S | Ultimate overload | 150%F.S | ||
Temperature effect span | <±0.02%F.S/10℃ | Excitation voltage | 10~12V DC | ||
Temperature effect zero | <±0.02%F.S/10℃ | Maximum excitation voltage | 15V DC | ||
Compensated temperature range | -10~+40℃ | nsulation resistance | ≥5000MΩ | ||
Operating temperature range | -30~+70℃ | Environmental protection | IP67 | ||
Zero balance | ±1%F.S | Material Stainless steel | |||
