Weighing solution
provider
provider
FS-C
ANE
Carbon steel

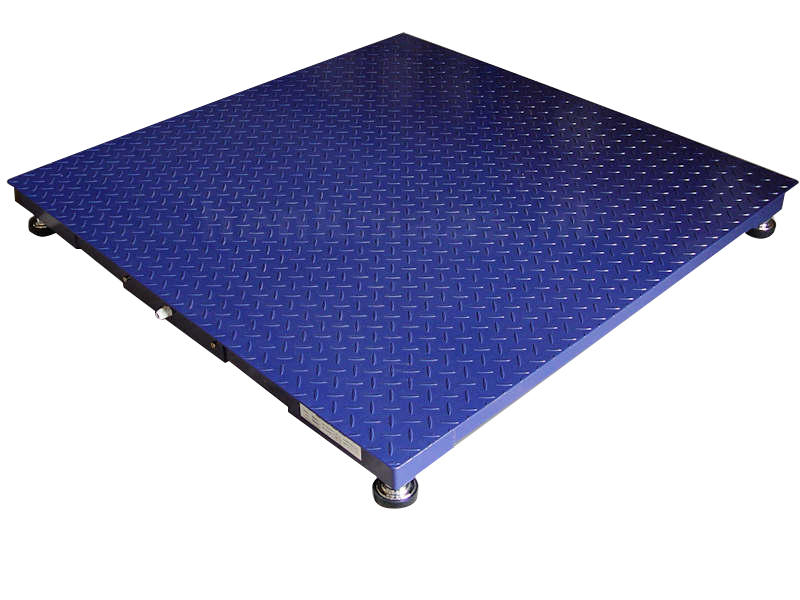

FS-C Series Electronic Floor Scale/Platform Scale
Specifications
Capapacity:
1000/2000/3000/5000/10000 kg
Operating environment humidity:
≤85%RH
Operating environment temperature:
-10℃~40℃
Power supply:
220V, AC/50HZ
Material:
Carbon steel, anti corrosion and anti rust coat painting, U-shape beams by moulds
Load cell:
ZEMIC or KELI optional
Max safety overload:
120% F.S
Ultimate overload:
150% F.S
Load cell cables and junction box located with fabrication
Customized size available
| Model | Size(L×W) | Max Capacity |
| FS-C8080 | 800×800 mm | 1 ton |
| FS-C1010 | 1000×1000 mm | 3 ton |
| FS-C1212 | 1200×1200 mm | 3 ton |
| FS-C1515 | 1500×1500 mm | 5 ton |
| FS-C1520 | 1500×2000 mm | 5 ton |
| FS-C2020 | 2000×2000 mm | 5 ton |
| FS-C2030 | 2000×3000 mm | 10 ton |
| FS-C2040 | 2000×4000 mm | 10 ton |
