KA serials
ANE

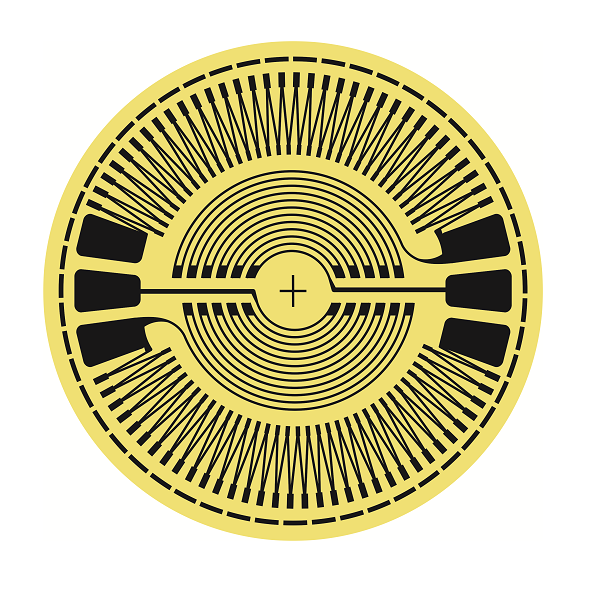

The BHF high precision strain gauge with epoxy phenolic as substrates material and as substrates material of coating as well, copper foil as sensitive grid and entire seal structure of compression process, which have possessing functions of temperature self-retrieve, creep self-retrieve, stable performance, high resistance to moisture and humidity. Suitable for the high precision weighing sensor of C3.
Gauge shape | Model | Grid size | Gage size |
| BHF350-6KA | Φ6 | Φ7 |
| BHF350-7KA | Φ7 | Φ8 | |
| BHF350-10KA | Φ9.5 | Φ10 | |
| BHF350-12KA | Φ12 | Φ12.8 | |
| BHF350-14KA | Φ14.3 | Φ15.2 | |
| BHF350-18KA | Φ17.7 | Φ19.3 | |
| BHF350-20KA | Φ19.8 | Φ21 | |
| BHF650-12KA | Φ12.1 | Φ12.9 | |
| BHF700-20KA | Φ19.8 | Φ21 | |
| BHF1000-13KA | Φ13.3 | Φ14.2 |
