XK3190-T8
YAOHUA

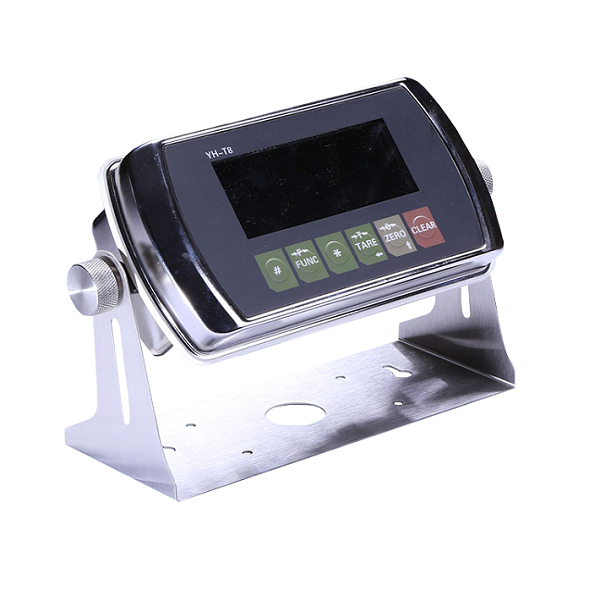

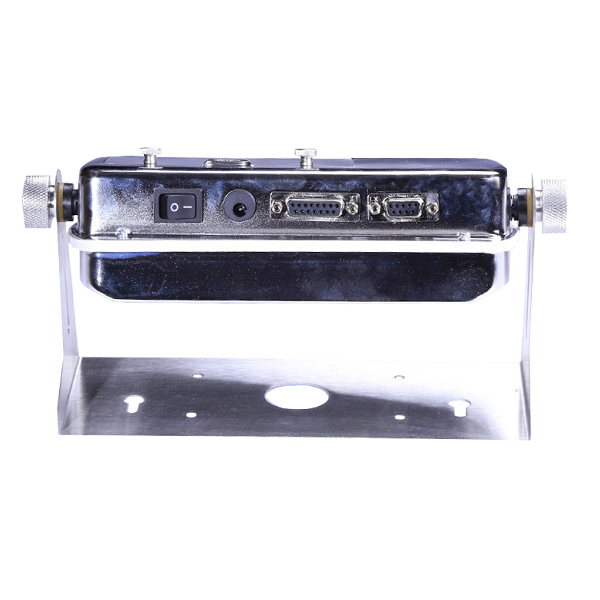

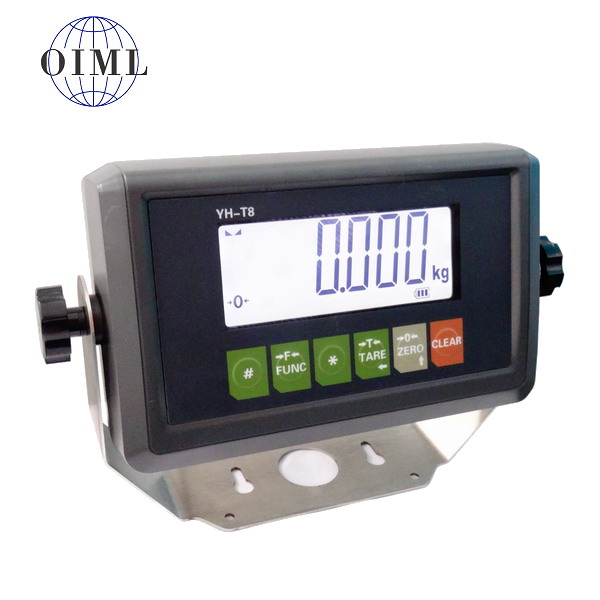

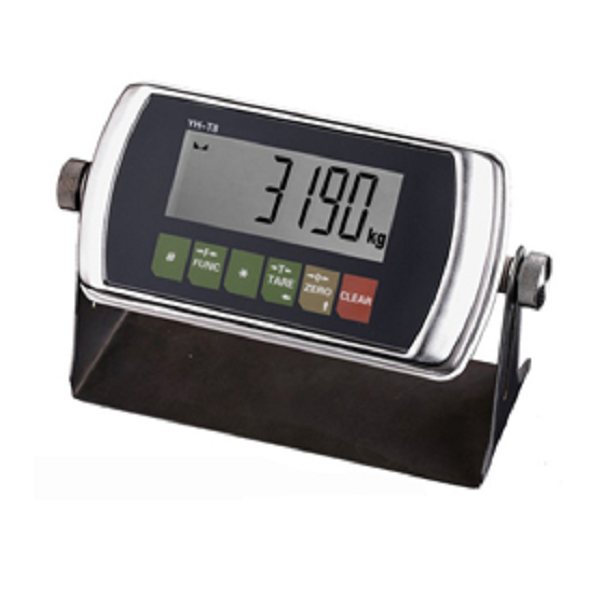

XK3190-T8 Platform scale indicator
Description
XK3190-T8(g2) full stainless steel indicator is applied in electronic platform scale, electronic floor scale and electronic ground scale and so on alike static weighing system equipped with 1-4 load cell.
Feature
• Multifunctional LCD display
• Peak value hold function
• Animal weighing function
• External serial port printing function
• Unit switch function(kg/lb/t)
• Manual accumulation and automatic accumulation
• Preset tare function
• High-low limits alarm function, HIGH-OK-LOW status indication
• Four grades battery indication, low power alarm and auto power off function
• Auto-sleep and multiple energy-saving mode
• Multiple grades backlight brightness setting
• Precision auto zoom 10-magnification function
• High precision A/D conversion with readability 1/30000
• Able to put in 4 pieces of AA Alkaline dry battery or NIMH rechargeable battery
• Able to connect with A/C adapter approved of international certification
• Optional RS232 and RS485 communication interface, and baud rate is selectable
• Optional 20mA current loop interface for scoreboard connection
Technical parameter
1. Precision grade: 3 grades
2. Max division: 3000
3. Input-signal range: -19mV
4. Min input-voltage (ΔUmin) of each indexing: 1μV
5. Conversion rate:: ≤80 times/sec
6. Nonlinear: ≤0.0015%
7. Power supply: DC 5V
8. Load cell communication: able to connect 1~4 350Ω load cell
9. Division:1/2/5/10/20/50(selectable)
10. Data transportation port(optional):
RS232 or RS485, 20mA current loop for scoreboard
11. Power: AC 100~240V；50~60Hz （AC adapter）
DC 4~6 V（optional: rechargeable battery or 4pcs 3A dry batteries）
12. Operation temperature: -10℃～40℃
13. Storage/transportation temperature: -25℃～55℃
14. Scoreboard interface(optional)
Signal output method: serial output, current loop signal
Baud rate:600
Distance of transportation: ≤200m
15. Serial communication interface:
RS 232C & RS485
Baud rate:600/1200/2400/4800/9600 optional
Distance of transport：≤30m (RS232C), ≤1000m（RS485）
